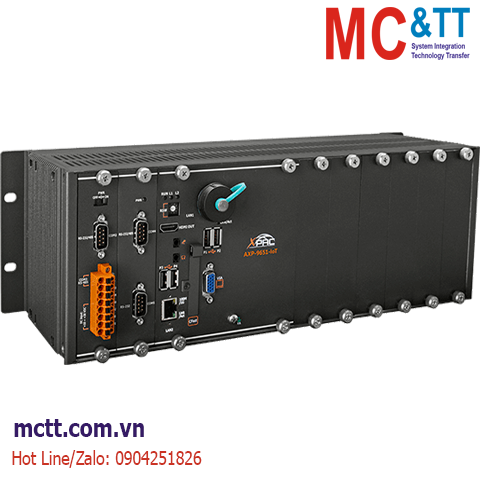

Bộ lập trình nhúng Windows PAC với CPU i5-8365UE Win10 IoT + 6 khe cắm module I/O ICP DAS AXP-9651-IoT CR

Chia sẻ:
Mã sản phẩm: AXP-9651-IoT
Thương hiệu: ICP DAS
Tình trạng:

6-slot Metal Standard PAC with i5-8365UE CPU and Win10 IoT

Liên hệ
Mô tả

Bộ lập trình nhúng Windows PAC với CPU i5-8365UE Win10 IoT + 6 khe cắm module I/O ICP DAS AXP-9651-IoT CR

Features

• Windows 10 IoT Enterprise (64-bit)
• Intel® Core™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T)
• 16 GB DDR4 SDRAM
• 64 GB SSD
• VGA / HDMI Dispaly Output
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input

Introduction

The AXP-9651-IoT are Windows 10 IoT based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Core i5-8365UE CPU, 6 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA, HDMI, USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K, I-97K, e-9K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.

AXP-9000-IoT has a built-in Windows 10 IoT Enterprise operating system, which can support both the Universal Windows App and traditional Windows applications simultaneously. For software development tools, it can maintain maximum sharing with Windows 10, and applications can be quickly ported to AXP-9000 and deployed in a variety of harsh environments.

Applications

https://mctt.vn/axp-9000-iot-icp-das

Specifications

Software
OS Windows 10 IoT Enterprise (64-bit)
Service IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework Support .Net Compact Framework 3.5 ~ 4.8
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net
Main Unit
CPU Intel® Core™ Whiskey Lake U i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T)
64-bit Hardware Serial Number Yes
System Memory 16 GB DDR4 SDRAM (SODIMM slots with a 16 GB DDR4 x 1)
Storage 1x64 GB SSD (SATAIII)
1x32 GB CFast card (SATAIII)
Non-Volatile Memory 128 KB MRAM
16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Signal 1xVGA, 1xHDMI
Resolution VGA 1920 x 1200 @ 60Hz
HDMI 4096 x 2160 @ 30P
LED Indicators
Status 1 x System
2 x Power
2 x Programmable
I/O Expansion
I/O Type I-9K, I-97K, e-9K series
Slots 6 x serial/parallel bus
1 x e-Bus x1
1 x e-Bus x4
COM Ports
Ports 1 x RS-232 (3000 VDC Isolated)
1 x RS-485 (3000 VDC Isolated)
2 x RS-232/RS-485 (3000 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Power Switch Yes
Audio
Jack Microphone-in and Earphone-out
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX (Intel® I219LM)
USB
Ports 2 x USB 2.0
2 x USB 3.0
Power
Capacity 80 W supply to CPU and backplane, 40 W supply to I/O expansion slots and USB ports, 120 W in total
Input Range +19 ~ 30 VDC (2 kV Isolated )
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption 32.6 W (Typical)
73 W (CPU Full Load)
Mechanical
Dimensions (mm) 422 x 164 x 133 (W x L x H)
Installation DIN-Rail, Wall mounting
Cooling Type CPU Heat Sink and 180,000 hour long-life fan with Smart Fan function
Environment
Operating Temperature -25 ~ +60 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

AXP-9651-IoT     CR  6-slot Metal Standard PAC with i5-8365UE CPU and Win10 IoT (RoHS)
