Module điều khiển chuyển động (Motionnet Motion) ICP DAS e-MN200 CR

Chia sẻ:
Mã sản phẩm: e-MN200
Thương hiệu: ICP DAS
Tình trạng:

e-Bus, Dual-line Motionnet Motion Control Module (For Distributed Motion & I/O Control)

Liên hệ
Mô tả

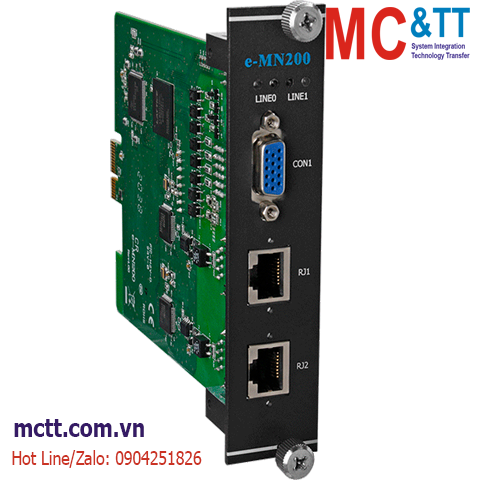

Module điều khiển chuyển động (Motionnet Motion) ICP DAS e-MN200 CR

Feature

  • Maximum Communication Speed: 20 Mbps
  • Distributed motion control up to 128 axes
  • Distributed I/O points up to 4096 points
  • Easy connection using RJ-45 phone jack connector
  • Parallel 1/0 Ports: 8 Input and 4 Output channels
  • Optional quadrature encoder input for linear scale or manual pulse generator input

Introduction

The e-MN200 is a Motion Control Module that provides two Motionnet serial communication lines for distributed motion and I/O control in machine automation applications. The Master card can be used to connect up to 128 Slave modules (64 x 2 lines). If one of the Motionnet lines is only used for I/O control, it can send/receive signals to/from 2048 points on 64 local devices within 0.97 msec. When it is used to control motors, it can control up to 64 axes, which can be used to execute continuous positioning motion, zero return and even multi-axis interpolation operations. In addition to serial communication, the e-MN200 is also equipped with parallel I/O ports (8 input channels and 4 output channels) for rapid and instinctive I/O control.

Application

Specifications

Software
OS Support Windows 7/10 32/64-bit
Windows XP/2000 32-bit
Development VC/VB/BCB
Utility --
Hardware
Connector HD D-Sub 15-pin x 1
LED Indicators
Status Connection (green)
Communication Error (red)
General
Interrupts Input Change of State, Communication Error
Digital Input
Channels 8
Type 12-24 V, NPN or PNP
Isolation --
Input Impedance --
Digital Output
Channels 4
Type NPN or PNP
Isolation --
PC Bus
Type 32-bit/33 MHz universal PCI-Bus
Motionnet
Communication Connectors RJ-45 x 2
Transfer Speed 2.5, 5, 10, 20 Mbps (Software controlled)
Length Max. 100 M (20 Mbps; 32 Slave modules)
Max. 50 M (20 Mbps; 64 Slave modules)
Max. 100 M (10 Mbps; 64 Slave modules)
Protocol --
Power
Consumption HD D-Sub 15-pin x 1
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature 20 ~ +80 °C
Humidity Operating: 10 ~ 85%; non-condensing
Storage: 5 ~ 95%; non-condensing

Download

Datasheet

Documents

Ordering Information

e-MN200     CR  e-Bus, Dual-line Motionnet Motion Control Module with RJ-45 (RoHS)
