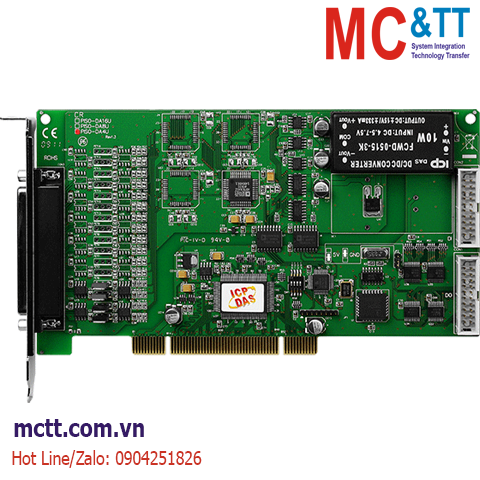

Card PCI 4 kênh AO 14-bit + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PISO-DA4U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 14-bit, 4-channel Analog Output
- 2500 VDC Bus and Power Isolation Protection
- Built-in DC/DC Converter with 3000 VDC Protection
- Software Calibration
- Two Timer-triggered Interrupt Sources
- Double-buffered DA Latch
- Supports Card ID (SMD Switch)
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Function for DI Channels
Introduction
The PISO-DAxU series card is designed as an easy replacement for the PIO-DA series without requiring any modification to the software or the driver.
The PISO-DAxU series provides an additional high-voltage isolation design that protects the Host PC from damage due to unexpected power surges, while the built-in high-quality isolation components provide the boards with 2500 VDC bus-type isolation. The voltage output range for the PISO-DAxU series is from -10 V to +10 V, and the current output range is from 0 to 20 mA.
In addition, the PISO-DAxU series also features the following innovative advantages:
1. Accurate and easy-to-use calibration:
ICP DAS provides a software calibration function rather than manual calibration so that jumpers and trim-pots are no longer required for calibration, and the calibration data can be saved in the EEPROM for long-term use.
2. Individual channel configuration:
Each channel can be individually configured as either voltage or current output.
3. Card ID:
ICP DAS has also included an onboard Card ID switch on the PISO-DAxU series that enables the board to be recognized via software if two or more boards are installed in the same computer.

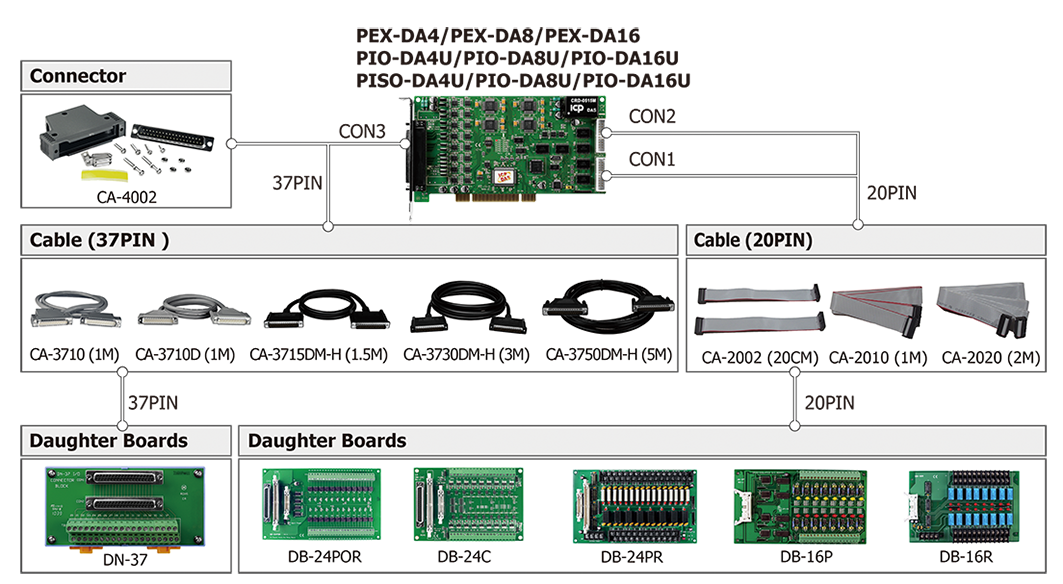

Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
20-pin Box header x 2 |
| Analog Output |
| Channels |
4 |
| Range |
Voltage: ±10 V
Current: 0 ~ 20 mA |
| Resolution |
14-bit |
| Accuracy |
0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Response Time |
333 kHz (Typical) |
| Voltage Output Capability |
±5 mA |
| Slew Rate |
0.71 V/μs |
| Isolation |
2500 V (Bus Type) |
| Operation Mode |
Static Update |
| Digital Input |
| Channels |
16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
3 |
| Type |
5 V/TTL |
| Resolution |
16-bit |
| Reference Clock |
Internal: 4 MHz |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
2200 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105.1 x 188 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-DA4U CR |
Universal PCI, 4-ch, 14-bit Isolated AO Board (RoHS)
Includes one CA-4002 D-Sub connector |
