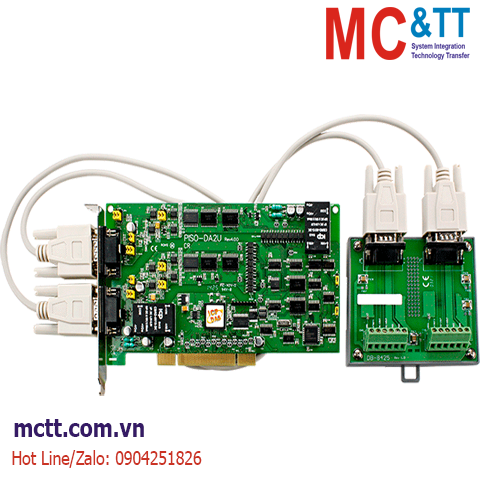

Card PCI 2 kênh đầu ra tương tự AO 12-bit ICP DAS PISO-DA2U/S CR

Features

  • Universal PCI (3.3 V/5 V) Interface
  • Supports Card ID (SMD Switch)
  • 12-bit, 2-channel Analog Output
    • 3750 VDC Bus and Channel Isolation Protection
    • 3000 VDC Power Isolation Protection
    • Unipolar or Bipolar Analog Output
    • Software Calibration
    • Two Timer-triggered Interrupt Sources
    • Calibration data stored in EEPROM
    • Double-buffered DA Latch

Introduction

The PISO-DA2U/S has 2 Analog Output channels with high-voltage isolation protection and is based on the Universal PCI interface (3.3 V/5V). The PISO-DA2U is fully compatible with the PISO-DA2, and is designed as a direct replacement without requiring any modification to the software or the driver.

The built-in high-quality isolation components on the PISO-DA2U/S provide 3750 VDC bus-type and channel-to-channel isolation, and offer durable abilities. The voltage output range for the PISO-DA2U/S can be set to ±10 V, ±5 V, 0 to 10 V, or 0 to 5 V, and the current output range can be either 0 to 20 mA or 4 to 20 mA.

In addition, the PISO-DA2U/S also features the following innovative advantages:

1. Accurate and easy-to-use calibration:
ICP DAS provides a software calibration function rather than manual calibration so that jumpers and trim-pots are no longer required for calibration, and the calibration data can be saved in the EEPROM for long-term use.

2. Channel-to-channel configuration:
Each channel can be individually configured as either voltage or current output and can be set to a different output range.

3. Card ID:
ICP DAS has also included an onboard Card ID switch on the PISO-DA2U/S that enables the board to be recognized via software if two or more boards are installed in the same computer.

Accessories

Applications

  • High speed data acquisition system.
  • Process monitor and control.
  • Vibration analysis.
  • Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Male DB9 x 2
Analog Output
Channels 2
Range Voltage: ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V
Current: 0 ~ 20 mA, 4 ~ 20 mA
Resolution 12-bit
Accuracy 0.015% of FSR ±1/2 LSB @ 25 °C, ±10 V
Response Time 500 kHz
Voltage Output Capability ±5 mA
Slew Rate 0.15 V/μs
Isolation 3750 VDC (Bus Type, CH-to-CH)
Operation Mode Static Update
PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Power
Consumption 1350 mA @ +5 V
Mechanical
Dimensions (mm) 98 x 189 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-DA2U/S     CR  Universal PCI, 2-ch Isolated AO Board (RoHS)
