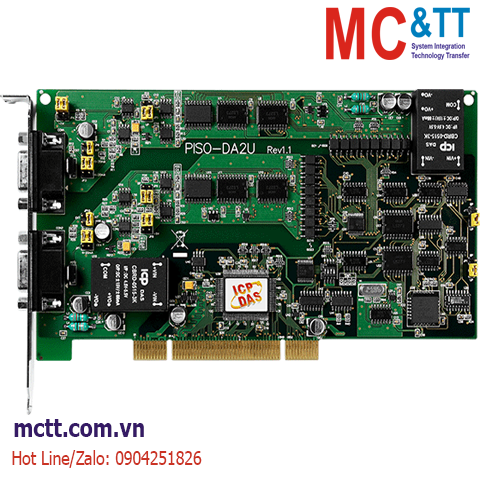

Card PCI 2 kênh đầu ra tương tự AO 12-bit ICP DAS PISO-DA2U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 12-bit, 2-channel Analog Output
- 3750 VDC Bus and Channel Isolation Protection
- 3000 VDC Power Isolation Protection
- Unipolar or Bipolar Analog Output
- Software Calibration
- Two Timer-triggered Interrupt Sources
- Calibration data stored in EEPROM
- Double-buffered DA Latch
Introduction
The PISO-DA2U has 2 Analog Output channels with high-voltage isolation protection and is based on the Universal PCI interface (3.3 V/5V). The PISO-DA2U is fully compatible with the PISO-DA2, and is designed as a direct replacement without requiring any modification to the software or the driver.
The built-in high-quality isolation components on the PISO-DA2U provide 3750 VDC bus-type and channel-to-channel isolation, and offer durable abilities. The voltage output range for the PISO-DA2U can be set to ±10 V, ±5 V, 0 to 10 V, or 0 to 5 V, and the current output range can be either 0 to 20 mA or 4 to 20 mA.
In addition, the PISO-DA2U also features the following innovative advantages:
1. Accurate and easy-to-use calibration:
ICP DAS provides a software calibration function rather than manual calibration so that jumpers and trim-pots are no longer required for calibration, and the calibration data can be saved in the EEPROM for long-term use.
2. Channel-to-channel configuration:
Each channel can be individually configured as either voltage or current output and can be set to a different output range.
3. Card ID:
ICP DAS has also included an onboard Card ID switch on the PISO-DA2U that enables the board to be recognized via software if two or more boards are installed in the same computer.
Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Male DB9 x 2 |
| Analog Output |
| Channels |
2 |
| Range |
Voltage: ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V
Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution |
12-bit |
| Accuracy |
0.015% of FSR ±1/2 LSB @ 25 °C, ±10 V |
| Response Time |
500 kHz |
| Voltage Output Capability |
±5 mA |
| Slew Rate |
0.15 V/μs |
| Isolation |
3750 VDC (Bus Type, CH-to-CH) |
| Operation Mode |
Static Update |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
1350 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
98 x 189 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-DA2U CR |
Universal PCI, 2-ch Isolated AO Board (RoHS)
Includes two CA-PC09M D-Sub connectors |
