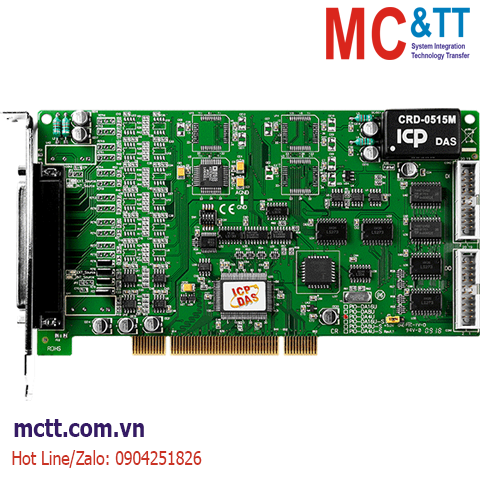

Card PCI 4 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PIO-DA4U CR

Chia sẻ:
Mã sản phẩm: PIO-DA4U
Thương hiệu: ICP DAS
Tình trạng:

Universal PCI, 4-ch, 14-bit AO Board

Liên hệ
Mô tả

Card PCI 4 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PIO-DA4U CR

Features

  • Universal PCI (3.3 V/5 V) Interface
  • 14-bit, 4-channel Analog Output
    • Software Calibration
    • Two Timer-triggered Interrupt Sources
    • Double-buffered DA Latch
  • 16-channel 5 V/TTL Digital Output
  • 16-channel 5 V/TTL Digital Input
    • Pull-high and Pull-low Function for DI Channels
  • Supports Card ID (SMD Switch)

Introduction

The PIO-DA series cards are compatible with the PCI versions of the PIO-DA cards and, in most cases, the PIO-DA series can be used as a direct replacement for the PIO-DA series without requiring any modification to the software or the driver.

The voltage output range for the PPIO-DA series is from -10 V to +10 V, and the current output range is from 0 to 20 mA.

In addition, the PIO-DA series also features the following innovative advantages:

1. Accurate and easy-to-use calibration:
ICP DAS provides a software calibration function rather than manual calibration so that jumpers and trim-pots are no longer required for calibration, and the calibration data can be saved in the EEPROM for long-term use.

2. Individual channel configuration:
Each channel can be individually configured as either voltage or current output.

3. Card ID:
ICP DAS has also included an onboard Card ID switch on the PIO-DA series that enables the board to be recognized via software if two or more boards are installed in the same computer.

Accessories

Applications

  • High speed data acquisition system.
  • Process monitor and control.
  • Vibration analysis.
  • Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID Yes(4-bit) for Version 1.1 or above
Connector Female DB37 x 1
20-pin Box header x 2
Analog Output
Channels 4
Range Voltage: ±10 V
Current: 0 ~ 20 mA
Resolution 14-bit
Accuracy 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V
Response Time 333 kHz (Typical)
Voltage Output Capability ±5 mA
Slew Rate 0.71 V/μs
Operation Mode Static Update
Digital Input
Channels 16
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 1.0 MHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 16
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Load Current Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed 1.0 MHz (Typical)
Timer/Counter/Frequency
Channels 3
Type 5 V/TTL
Resolution 16-bit
Reference Clock Internal: 4 MHz
PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Power
Consumption 600 mA@ +5 V
Mechanical
Dimensions (mm) 105.1 x 188 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PIO-DA4U     CR  Universal PCI, 4-ch, 14-bit AO Board (RoHS)
Includes one CA-4002 D-Sub connector
