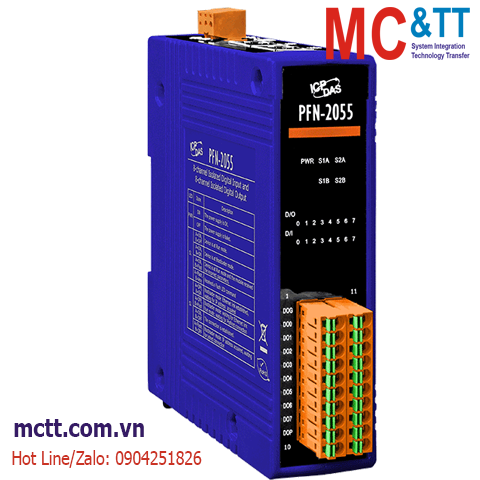

Module Profinet 8 kênh đầu vào số DI + 8 kênh đầu ra số DO ICP DAS PFN-2055 CR
Features
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- Do load voltage: +3.5 ~ +50 VDC
- Do load current: 700 mA/Channel (max.)
- Provide short-circuit protection on DO channels
- DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
- 4 kV Contact ESD protection for any terminal
Introduction

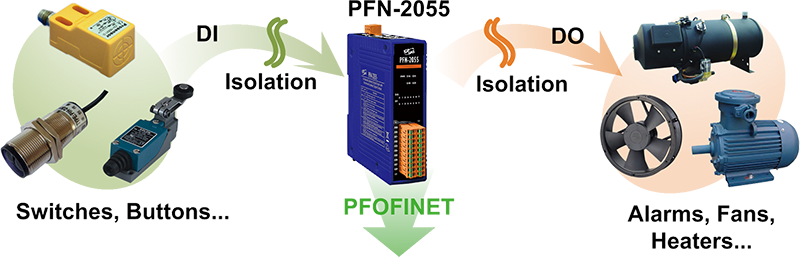

The PFN-2055 is specially designed for PROFINET IO device. It has 8-channel isolated digital inputs and 8-channel isolated digital outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| CPU Module |
| CPU |
32-bit CPU Core |
| EEPROM |
8 KB |
| Flash |
4 MB |
| SRAM |
32 MB |
| Watchdog Timer |
CPU built-in |
| LED Indicators |
| Status |
PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Digital Input |
| Channels |
8 |
| Type |
Dry + Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 VDC to +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +4 VDC max. |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ +50 VDC |
| Load Current |
700 mA/Channel |
| Ethernet |
| Services |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET |
| Conformance Classes |
Class B |
| Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time |
1 ms (min) |
| Protocol |
PROFINET IO Device |
| Mechanical |
| Dimensions (mm) |
33 x 107 x 126 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PFN-2055 CR |
PROFINET I/O Module (Isolated 8-ch DI & 8-ch DO) (RoHS) |
