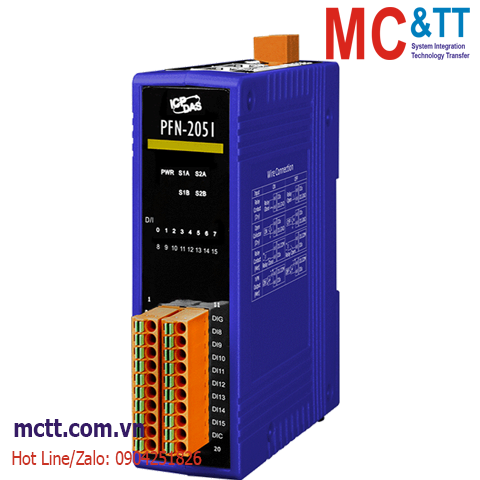

Module Profinet 16 kênh đầu vào số DI ICP DAS PFN-2051 CR

Chia sẻ:
Mã sản phẩm: PFN-2051
Thương hiệu: ICP DAS
Tình trạng:

PROFINET I/O Module (Isolated 16-ch DI)

Liên hệ
Mô tả

Module Profinet 16 kênh đầu vào số DI ICP DAS PFN-2051 CR

Features

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
  • 4 kV Contact ESD protection for any terminal

Introduction

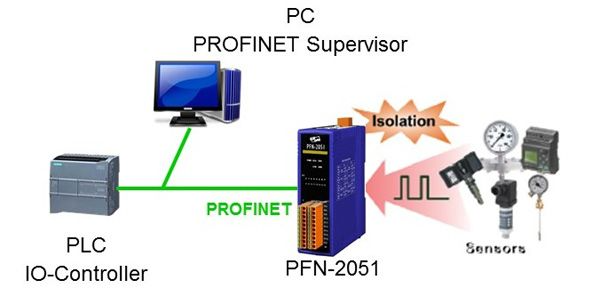

The PFN-2051 is specially designed for PROFINET IO device. It has 16-channel isolated digital inputs and, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool

Applications

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…

Specifications

CPU Module
CPU 32-bit CPU Core
EEPROM 8 KB
Flash 4 MB
SRAM 32 MB
Watchdog Timer CPU built-in
LED Indicators
Status PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Digital Input
Channels 16
Type Dry + Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level Dry: Close to GND
Wet: +10 VDC to +50 VDC
OFF Voltage Level Dry: Open
Wet: +4 VDC max.
Ethernet
Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
PROFINET
Conformance Classes Class B
Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time 1 ms (min)
Protocol PROFINET IO Device
Power
Consumption 3.5 W
Mechanical
Dimensions (mm) 33 x 107 x 126 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PFN-2051     CR  PROFINET I/O Module (Isolated 16-ch DI) (RoHS)
