Module Profinet 4 kênh đầu ra tương tự AO ICP DAS PFN-2024 CR
Features
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- 16-bits resolution DAC
- Output Range: 0~20mA, 4~20mA, 0~10V, +/-10V, 0~5V, +/-5V
- 4 kV Contact ESD protection for any terminal
Introduction
The PFN-2024 is specially designed for PROFINET IO device. It has 4-channel isolated analog output with voltage and current output types. It provides ±4kV ESD protection contacting for all terminals. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
Applications

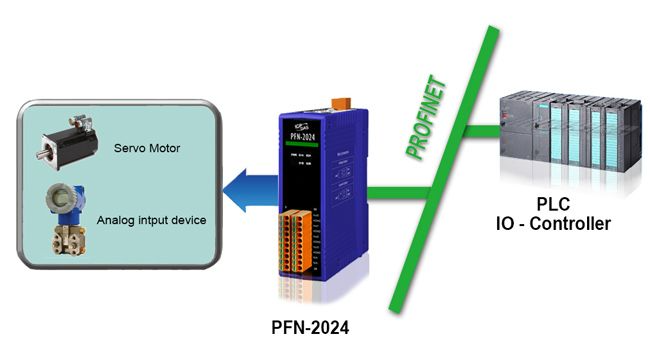

• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| CPU Module |
| CPU |
32-bit CPU Core |
| EEPROM |
8 KB |
| Flash |
4 MB |
| SRAM |
32 MB |
| Watchdog Timer |
CPU built-in |
| LED Indicators |
| Status |
PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Analog Output |
| Channels |
4 |
| Range |
0~20mA, 4~20mA (current sourcing)
0~10V, +/-10V, 0~5V, +/-5V |
| Resolution |
16 bit |
| Accuracy |
+/- 0.1% of FSR |
| Isolation |
1500 VDC |
| Ethernet |
| Services |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET |
| Conformance Classes |
Class B |
| Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time |
1 ms (min) |
| Protocol |
PROFINET IO Device |
| Mechanical |
| Dimensions (mm) |
33 x 107 x 126 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PFN-2024 CR |
PROFINET I/O Module (4-channel Isolated Analog Output Module) (RoHS) |
