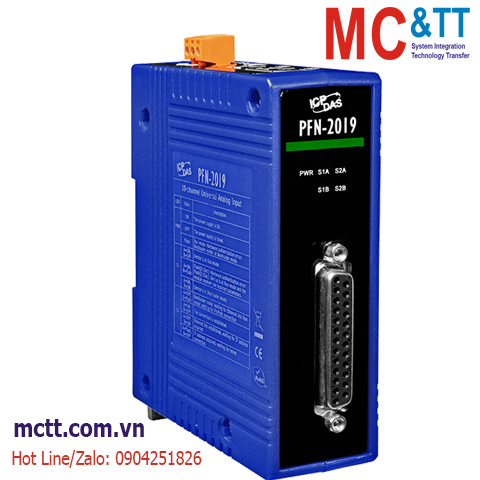

Module Profinet 10 kênh đầu vào tương tự (Thermocouple) AI ICP DAS PFN-2019/S CR
Features
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- 16-bits resolution & 10Hz sample rate
- Supports thermocouple devices with J,K,T,E,R,S,B,N,C
- 4 kV Contact ESD protection for any terminal
Introduction
The PFN-2019 is specially designed for PROFINET IO device. It has 10-channel universal analog input with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

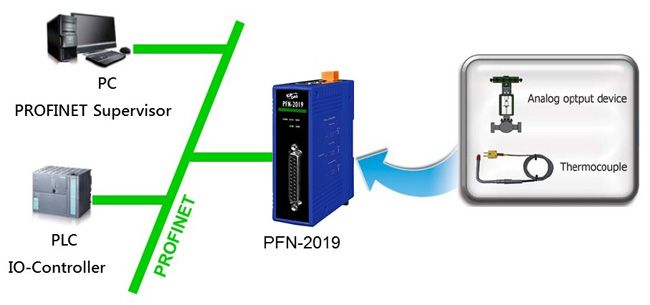

Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| CPU Module |
| CPU |
32-bit CPU Core |
| EEPROM |
8 KB |
| Flash |
4 MB |
| SRAM |
32 MB |
| Watchdog Timer |
CPU built-in |
| LED Indicators |
| Status |
PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Analog Input |
| Channels |
10 channel differential |
| Range |
+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V, +/-20mA, 0~20mA, 4~20mA (Jumper Selectable),
Thermocouple Type: J, K, T, E, R, S, B, N, C |
| Resolution |
16 bit |
| Accuracy |
+/- 0.1% of FSR |
| Sampling Rate |
10 Hz (Total) |
| Open Wire Detection |
Yes |
| Ethernet |
| Services |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET |
| Conformance Classes |
Class B |
| Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time |
1 ms (min) |
| Protocol |
PROFINET IO Device |
| Mechanical |
| Dimensions (mm) |
33 x 93 x 126 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +70 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PFN-2019/S CR |
PROFINET I/O Module (10-channel Universal Analog Input Module) (RoHS)
Includes a DB-1820 daughter board |
