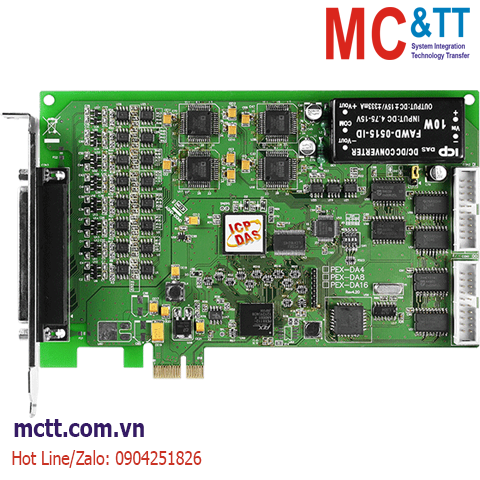

Card PCI Express 4 kênh đầu ra tương tự AO 14 bits + 16 kênh vào/ra số DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PEX-DA4 CR
Features
- PCI Express x1 Interface
- 16-channel 5 V/TTL Digital Input
- 16-channel 5 V/TTL Digital Output
- Pull-high/Pull-low Jumpers for DI Channels
- Supports Card ID (SMD Switch)
- 4 channels, 14-bit Analog Output
- Voltage Output: ±10 V
- Current Output: 0 ~ +20 mA (sink)
- Double-buffered DA Latch
Introduction
For the PEX-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, These cards also feature the following advantages by ICP DAS's innovation: Accurate and easy-to-use calibration. ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore.
The calibration information can be saved in EEPROM for long-term use. Individual channel configuration.In other words, every channel can be individually configured as voltage output or current output! ICP DAS provides the Card ID function. Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.
1. Accurate and easy-to-use calibration: ICP DAS provides a software calibration function, meaning that jumpers and trimpots are no longer required. The calibration data is saved in EEPROM for long-term use.
2. Individual channel configuration: Each channel can be individually configured as either voltage or current output.
3. Card ID: The PEX-DA series includes a Card ID switch that enables the board to be easily recognized via software if two or more cards are installed in the same computer.
The PEX-DA series is designed as an easy replacement for the PIO-DA series without requiring any modification to either the software or the driver.
Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-express-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
20-pin Box header x 2 |
| Analog Output |
| Channels |
4 |
| Range |
Voltage: ± 10 V
Current: 0 ~ 20 mA |
| Resolution |
14-bit |
| Accuracy |
0.04% of FSR ± 2 LSB @ 25 °C, ± 10 V |
| Response Time |
166 kHz (Typical) |
| Voltage Output Capability |
±5 mA |
| Slew Rate |
0.71 V/μs |
| Operation Mode |
Static Update |
| Digital Input |
| Channels |
16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
500 kHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/CMOS |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.1 V Max.
Logic 1: 4.4 V Min. |
| Load Current |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| Response Speed |
500 kHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
3 |
| Type |
5 V/TTL |
| Resolution |
16-bit |
| Reference Clock |
Internal: 4 MHz |
| PC Bus |
| Type |
PCI Express x 1 |
| Data Bus |
8-bit |
| Power |
| Consumption |
750 mA@ +3.3 V
350 mA@ +12 V |
| Mechanical |
| Dimensions (mm) |
116.4 x 172.6 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PEX-DA4 CR |
PCI Express, 4-ch, 14-bit AO Board (RoHS)
Includes one CA-4002 D-Sub connector |
