Card PCI Express 16 kênh AO 14 bits + 16 kênh vào/ra số DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PEX-DA16 CR

Chia sẻ:
Mã sản phẩm: PEX-DA16
Thương hiệu: ICP DAS
Tình trạng:

PCI Express, 16-ch, 14-bit AO Board

Liên hệ
Mô tả

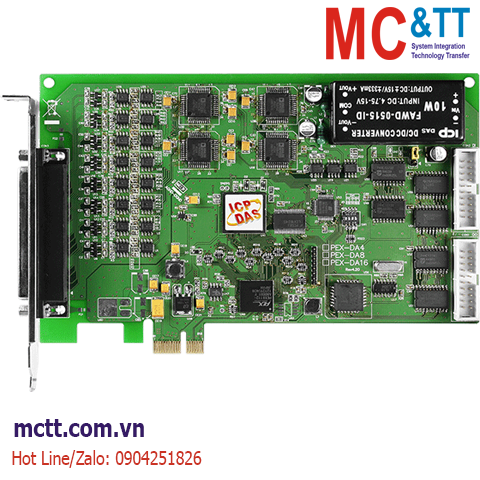

Card PCI Express 16 kênh AO 14 bits + 16 kênh vào/ra số DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PEX-DA16 CR

Features

  • PCI Express x1 Interface
  • 16-channel 5 V/TTL Digital Input
  • 16-channel 5 V/TTL Digital Output
  • Pull-high/Pull-low Jumpers for DI Channels
  • Supports Card ID (SMD Switch)
  • 16 channels, 14-bit Analog Output
  • Voltage Output: ±10 V
  • Current Output: 0 ~ +20 mA (sink)
  • Double-buffered DA Latch

Introduction

For the PEX-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, These cards also feature the following advantages by ICP DAS's innovation: Accurate and easy-to-use calibration. ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore.

The calibration information can be saved in EEPROM for long-term use. Individual channel configuration.In other words, every channel can be individually configured as voltage output or current output! ICP DAS provides the Card ID function. Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.

1. Accurate and easy-to-use calibration: ICP DAS provides a software calibration function, meaning that jumpers and trimpots are no longer required. The calibration data is saved in EEPROM for long-term use.

2. Individual channel configuration: Each channel can be individually configured as either voltage or current output.

3. Card ID: The PEX-DA series includes a Card ID switch that enables the board to be easily recognized via software if two or more cards are installed in the same computer.

The PEX-DA series is designed as an easy replacement for the PIO-DA series without requiring any modification to either the software or the driver.

Accessories

Applications

  • High speed data acquisition system.
  • Process monitor and control.
  • Vibration analysis.
  • Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-express-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
20-pin Box header x 2
Analog Output
Channels 16
Range Voltage: ± 10 V
Current: 0 ~ 20 mA
Resolution 14-bit
Accuracy 0.04% of FSR ± 2 LSB @ 25 °C, ± 10 V
Response Time 166 KHz (Typical)
Voltage Output Capability ±5 mA
Slew Rate 0.71 V/μs
Operation Mode Static Update
Digital Input
Channels 16
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 500 kHz
Trigger Mode Static Update
Digital Output
Channels 16
Type 5 V/CMOS
Operation Mode Static Update
Load Voltage Logic 0: 0.1 V Max.
Logic 1: 4.4 V Min.
Load Current Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V
Response Speed 500 kHz (Typical)
Timer/Counter/Frequency
Channels 3
Type 5 V/TTL
Resolution 16-bit
Reference Clock Internal: 4 MHz
PC Bus
Type PCI Express x 1
Data Bus 8-bit
Power
Consumption 750 mA@ +3.3 V
550 mA @ +12 V
Mechanical
Dimensions (mm) 116.4 x 172.6 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PEX-DA16     CR  PCI Express, 16-ch, 14-bit AO Board (RoHS)
Includes one CA-4002 D-Sub connector
