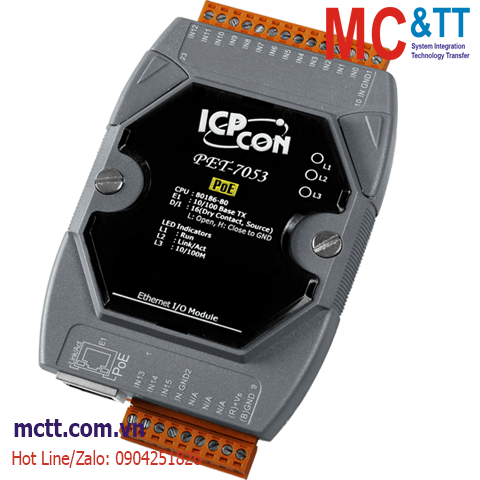

Module PoE Ethernet Modbus TCP 16 kênh đầu vào số DI ICP DAS PET-7053 CR

Chia sẻ:
Mã sản phẩm: PET-7053
Thương hiệu: ICP DAS
Tình trạng:

PoE Ethernet I/O Module with 16-ch DI

Liên hệ
Mô tả

Module PoE Ethernet Modbus TCP 16 kênh đầu vào số DI ICP DAS PET-7053 CR

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • DI/Counter: 16 Channels

Introduction

The PET-7053 provides 16 dry contact digital input channels. Each input channel can be used as a 32-bit counter. It features optical isolation for 3750 Vrms of transient overvoltage protection but doesn't provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.

Applications

  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status Run, Ethernet, PoE
Digital Input/Counter
Channels 16
Type Dry Contact
Sink/Source (NPN/PNP) Source
ON Voltage Level Close to GND
OFF Voltage Level Open
Max. Counts 4,294,967,295 (32-bit)
Frequency 500 Hz
Min. Pulse Width 1 ms
Effective Distance 500m (max.)
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
PoE Yes
Security ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 2.8 W (max.)
Powered from PoE IEEE 802.3af, Class1
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-7053     CR  PoE Ethernet I/O Module with 16-ch DI (RoHS)
