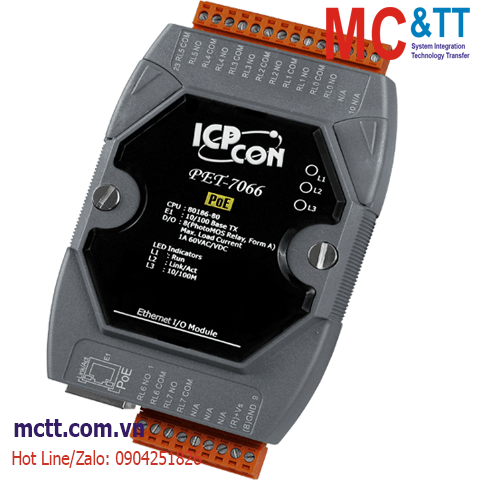

Module PoE Ethernet Modbus TCP 8 kênh đầu ra PhotoMOS Relay ICP DAS PET-7066 CR
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- I/O Pair Connection
- Built-in I/O
- PhotoMOS Relay: 8 Channels
Introduction
The PET-7066 provides 8 form A PhotoMOS relays. It features optical isolation for 3000 Vrms of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of the PhotoMOS relay are programmable. It can safely be used in applications where hazardous voltages are present.
Applications
-
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
Run, Ethernet, PoE |
| Relay Output |
| Channels |
8 |
| Type |
PhotoMOS Relay, Form A |
| Contact Rating |
60V/1.0A (Operating Temperature -25 to +40°C)
60V/0.8A (Operating Temperature +40 to +60°C)
60V/0.7A (Operating Temperature +60 to +75°C) |
| Leakage Current |
1 μA |
| Operate Time |
2.0 ms (max.) |
| Release Time |
0.3 ms (max.) |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Base-TX |
| PoE |
Yes |
| Security |
ID, Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
2.8 W (max.) |
| Powered from PoE |
IEEE 802.3af, Class1 |
| Powered from Terminal Block |
+12 to +48 VDC |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 35 (W x L x H) |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PET-7066 CR |
PoE Ethernet I/O Module with 8-ch PhotoMOS Relay (RoHS) |
