Module PoE Ethernet Modbus TCP 3 kênh đầu vào Counter/Encoder ICP DAS PET-7083 CR

Chia sẻ:
Mã sản phẩm: PET-7083
Thương hiệu: ICP DAS
Tình trạng:

PoE Ethernet I/O Module with 3-ch Encoder/Counter Inputs

Liên hệ
Mô tả

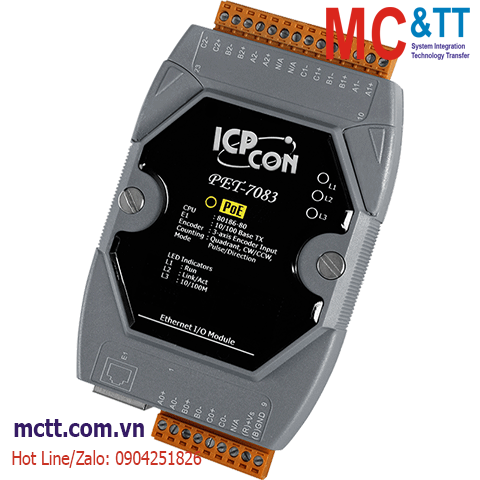

Module PoE Ethernet Modbus TCP 3 kênh đầu vào Counter/Encoder ICP DAS PET-7083 CR

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Built-in I/O
    • 3-Axis 32-bit encoder/counter inputs
    • 1 MHz max. for Quadrant mode
    • 4 MHz max. for CW/CCW, Pulse/Direction mode
    • Counter Value Retention

Introduction

The PET-7083 is a 3-axis high speed encoder/counter module. Each axis can be individually configured for Quadrant, Pulse/Direction or CW/CCW counting modes. The maximum input rate for Quadrant counting mode is 1 MHz, and for Pulse/Direction, CW/CCW counting modes is 4 MHz. The encoder/counter module is equipped a FRAM to retain the counter value after it is powered off. FRAM is a nonvolatile memory that can hold written data even after it is powered off. The data retention can be 10 years. And the feature can be configured as enabled or disabled.

Applications

  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status Run, Ethernet, PoE
Counter/Frequency/Encoder Input
Channels 3-axis
Counter Mode Quadrant
CW/CCW
Pulse/Direction
Bits 32-bit
ON Voltage Level 5 V: +3.5 to +5 VDC
12 V with 1 kΩ External Resistor: +5 to +12 VDC
24 V with 2 kΩ External Resistor: +7 to +24 VDC
OFF Voltage Level +2 VDC (max.)
Individual Channel Configuration Yes
Max. Speed Quadrant mode: 1 MHz
CW/CCW mode: 4 MHz
Pulse/Direction mode: 4 MHz
Counter Value Retention Yes
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
PoE Yes
Security ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 2.7 W (max.)
Powered from PoE IEEE 802.3af, Class1
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-7083     CR  PoE Ethernet I/O Module with 3-ch Encoder/Counter Inputs (RoHS)
