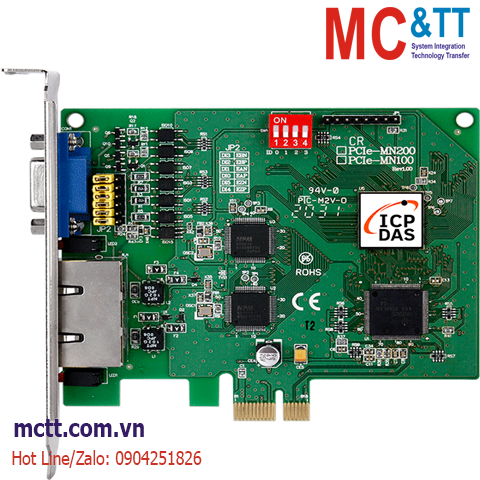

Card PCI Express Dual-line Motionnet Motion Control ICP DAS PCIe-MN200 CR
Features
- Maximum Communication Speed: 20 Mbps
- Distributed motion control up to 128 axes
- Distributed I/O points up to 4096 points
- Easy connection using RJ-45 phone jack connector
- Parallel 1/0 Ports: 8 Input and 4 Output channels
- Optional quadrature encoder input for linear scale or manual pulse generator input
Introduction
The PCIe-MN200 is a Motion Control Module that provides two Motionnet serial communication lines for distributed motion and I/O control in machine automation applications. The Master card can be used to connect up to 128 Slave modules (64 x 2 lines). If one of the Motionnet lines is only used for I/O control, it can send/receive signals to/from 2048 points on 64 local devices within 0.97 msec. When it is used to control motors, it can control up to 64 axes, which can be used to execute continuous positioning motion, zero return, and even multi-axis interpolation operations. In addition to serial communication, the PCIe-MN200 is also equipped with parallel I/O ports (8 input channels and 4 output channels) for rapid and instinctive I/O control.
Applications
Click to view the Introduction of https://mctt.vn/motionnet-control-icp-das
Specifications
| Software |
| OS Support |
Windows 7/10 32/64-bit
Windows XP/2000 32-bit |
| Development |
VC/VB/BCB |
| Utility |
-- |
| Hardware |
| Connector |
HD D-Sub 15-pin x 1 |
| LED Indicators |
| Status |
Connection (green)
Communication Error (red) |
| General |
| Interrupts |
Input Change of State, Communication Error |
| Digital Input |
| Channels |
8 |
| Type |
12-24 V, NPN or PNP |
| Isolation |
-- |
| Input Impedance |
-- |
| Digital Output |
| Channels |
4 |
| Type |
NPN or PNP |
| Isolation |
-- |
| PC Bus |
| Type |
PCI Express x1 |
| Motionnet |
| Communication Connectors |
RJ-45 x 2 |
| Transfer Speed |
2.5, 5, 10, 20 Mbps (Software controlled) |
| Length |
Max. 100 M (20 Mbps; 32 Slave modules)
Max. 50 M (20 Mbps; 64 Slave modules)
Max. 100 M (10 Mbps; 64 Slave modules) |
| Protocol |
-- |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
20 ~ +80 °C |
| Humidity |
Operating: 10 ~ 85%; non-condensing
Storage: 5 ~ 95%; non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCIe-MN200 CR |
PCI Express Bus, Dual-line Motionnet Motion Control Module with RJ-45 (RoHS) |
