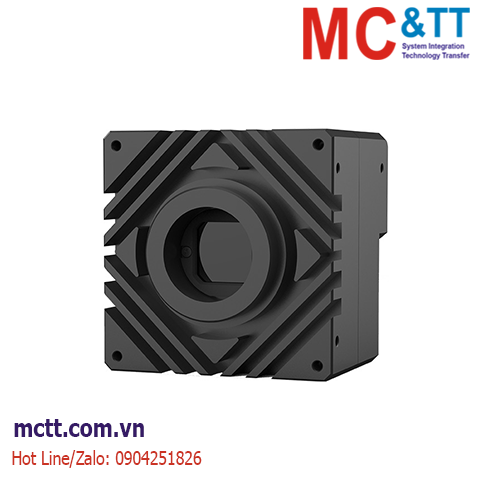

Camera công nghiệp 10GigE Area Scan 5MP, 2/3", 3.4um, 2448x2048, 163.75fps MindVision MV-XGC507GC
MV-XGC507GC/GM has features of high definition, low noise, excellent performance, easy installation and usage and so on. It is suitable for industrial testing, biomedical, aerospace, scientific research, teaching education and other fields.
Tính năng
- Using standard 10 Gigabit network interface design, and CAT 6A cables can realize stable communication.
- Compared with the CameraLink interface with the capture card, the cost is greatly reduced.
- The longest transmission distance can reach 100 meters, and the industrial field wiring is no longer restricted; it is backward compatible with Gigabit Ethernet.
- The effective bandwidth is 1200MByte, which is 10 times that of the Gigabit network, which greatly shortens the image transmission time and delay.
- Support GigEVision, GenICam standards and have the same SDK as Gigabit cameras, shortening customer development cycle
Thông số kỹ thuật
| Model |
MV-XGC507GC |
MV-XGC507GM |
| Sensor |
1/1.7" CMOS
|
| Sensor type |
GMAX3405 |
| Camera type |
Color |
Mono |
| Pixel size |
3.4umx3.4um |
| Effective pixels |
5MP
|
| Resolution @ frame rate |
2448x2048@163.75fps |
| Exposure mode |
Frame exposure |
| Dynamic range |
66.9dB@Sub-LVDS 12bit@gain*1 |
| Signal to Noise Ratio |
39.3dB@Sub-LVDS 12bit@gain*1 |
| Sensitivity |
2.36x10^7 e-/((W/m^2)·s) @540nm |
| GPIO |
2 input and 2 output, 1 way configurable input and output, supports trigger and strobe sync modes |
| Output pixel width |
12bit
|
AD width
|
10/12bit |
| Frame buffer |
1GB |
| Time of exposure |
0.0029-48653.9235ms |
| Maximum gain (multiple) |
16 |
| User EEPROM |
2K Bytes
|
| Frequency output format |
Bayer GB 8/12bit |
Mono 8/12bit |
Visual standard protocol
|
GigE Vision, GenICam |
| Lens interface |
C mount |
Port
|
10 Gigabit copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G |
| Power supply |
24V（±10%） |
| Power |
<8W
|
| Boundary dimension |
64X64X52.7(mm) (Lens base and rear shell interface are not included) |
| Weight |
<350g
|
| Working temperature |
0~50℃
|
| Working humidity |
20~80%(No Condensation)
|
| Storage temperature |
-30~60℃
|
| Storage humidity |
20~95%(No Condensation)
|
| Operating system |
Windows XP, Windows 7/8/10/11 32-bit and 64-bit systems, Linux 32-bit and 64-bit systems |
| Drive program |
Directshow components Halcon special components Labview dedicated drive OCX components TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions |
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
