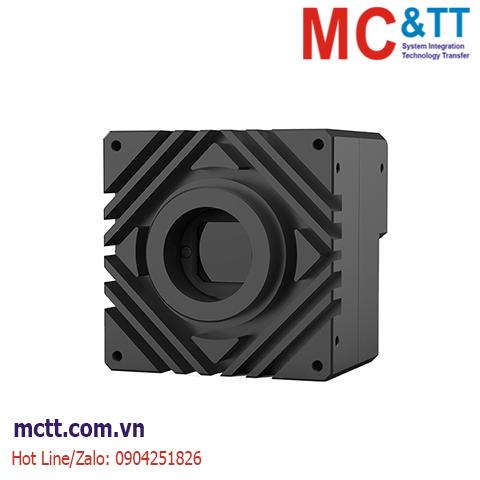

Camera công nghiệp 10GigE Area Scan 18MP, 1", 2.5um, 4512x4096, 63.5fps MindVision MV-XGC1803GM
MV-XGC1803GC/GM has features of high definition, low noise, excellent performance, easy installation and usage and so on. It is suitable for industrial testing, biomedical, aerospace, scientific research, teaching education and other fields.
Tính năng
- Using standard 10 Gigabit network interface design, and CAT 6A cables can realize stable communication.
- Compared with the CameraLink interface with the capture card, the cost is greatly reduced.
- The longest transmission distance can reach 100 meters, and the industrial field wiring is no longer restricted; it is backward compatible with Gigabit Ethernet.
- The effective bandwidth is 1200MByte, which is 10 times that of the Gigabit network, which greatly shortens the image transmission time and delay.
- Support GigEVision, GenICam standards and have the same SDK as Gigabit cameras, shortening customer development cycle
Thông số kỹ thuật
| Model |
Product Model |
MV-XGC1803GC |
MV-XGC1803GM |
|
Product Name |
10GigE Camera
|
Sensor
|
Color/Mono |
Color |
Mono |
| Sensor Model |
GPIXEL-GMAX2518
|
| Sensor Type |
CMOS
|
| Optical Size |
1"
|
| Pixel Size |
2.5um x 2.5um
|
| Exposure Method |
Global Shutter
|
| Efective Pixels |
18MP
|
| AD Width |
12bit
|
Performance
Parameters
|
Signal-to-Noise Ratio |
37.7dB |
| Dynamic Range |
66.9dB |
| Sensitivity |
1.05x10^7e-/ ( (W/m^2)·s) |
| Quantum Efciency |
64%520nm |
64%520nm |
| Resolution@Frame Rate |
4512*4096 Max@63.5FPS |
| Output Pixel Width |
12bit
|
| Video Output Format |
Bayer 8/12 bit |
Mono 8/12 bit |
| Maximum gain |
20X
|
| Exposure Time Range |
0.0038-498.0698ms
|
| Trigger Mode |
Continuous/Software Trigger/Hardware Trigger
|
| Frame Bufer |
1GB
|
| User-Defned Data Area |
2KB
|
Electrical
Characteristics
|
Data Interface |
10 Gigabit copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G |
| I/O Port |
2 optocoupler inputs, 2 optocoupler outputs, 1 non-isolated configurable input/output, supporting trigger and flash sync modes |
| Power Supply |
External power supply 24V (±10%) |
| Power |
<12W
|
Structural
Characteristics
|
Heat Dissipation Method |
Aluminum Alloy Body Natural Cooling
|
| Lens Mount |
C Mount
|
| External Dimensions |
64x64x52.7mm (excluding lens mount and rear shell interface) |
| Weight |
<500g
|
| Ingress Protection Rating |
IP40
|
| Temperature |
Operating Temperature 0~50°C / Storage Temperature -30~60°C
|
| Humidity |
Operating Humidity 20~80% (non-condensing) / Storage Humidity 20~95% (non-condensing)
|
Protocol
Standards
|
Operating system |
WINXP/7/8/10/11 systems (32 & 64-bit), Linux systems (32 & 64-bit)
|
| Software |
Directshow components Halcon special components Labview dedicated drive OCX components TWAIN components
|
| Vision Standard Protocol |
GigE Vision, GenICam
|
| Certification |
CE,RoHS
|
Other functions
|
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc
|
Tài liệu
Datasheet
