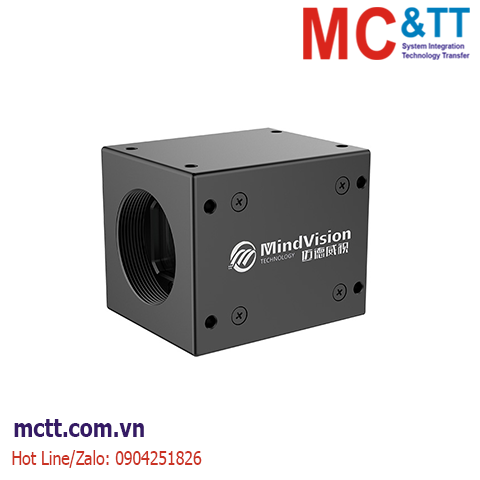

Camera công nghiệp USB2.0 Area Scan 1.2MP, 1/3", 3.75um, 1280x960, 39fps MindVision MV-UB130GM
MV-UB130GM has high resolution, low noise, excellent performance, easy installation and usage and other features.It is suitable for industrial inspection, medical treatment, scientific research, education and other fields.
Tính năng
- USB2.0 interface, no need for external power supply, plug and play.
- Support 8bit to 12bit raw data output.
- Support external trigger, strobe synchronization.
- Support Windows, Linux and ARM Linux, Android system.
- Inserted with hardware frame buffer, support more than 32 cameras working at the same time.
- Custom data can be written in the camera
Thông số kỹ thuật
| Model |
MV-UB130GM |
| Sensor |
1/3" CMOS |
| Sensor type |
AR0135
|
| Camera type |
Mono |
| Pixel size |
3.75x3.75um
|
| Effective pixels |
1.2MP
|
| Resolution @ frame rate |
1280x960MAX@39fps
|
| Exposure mode |
Frame exposure
|
| Signal to Noise Ratio |
40.7dB |
| Dynamic range |
71.1dB |
| Sensitivity |
85 ke-/lux*sec @670nm |
| GPIO |
1 optical isolation input, 2 optical isolation output |
| Output pixel width |
12bit
|
| AD width |
12bit |
| Frame buffer |
32M Bytes |
| Exposure time |
0.019~18.2ms |
| Maximum gain (multiple) |
4 |
| User EEPROM |
2K Bytes
|
| Video output format |
Mono8/12 bit |
| Lens interface |
C/CS port, adapter rings are provided
|
Data interface
|
USB2.0
|
| Power supply |
5V
|
| Power |
<2W
|
| Boundary dimension |
38X38X46(mm) (Lens base and rear shell interface are not included) |
| Weight |
<120g
|
| Working temperature |
0~50℃
|
| Working humidity |
20~80%(No Condensation)
|
| Storage temperature |
-30~60℃
|
| Storage humidity |
20~95%(No Condensation)
|
| Operating system |
WINXP, WIN7/8/10 32&64-bit systems, Linux and ARM Linux drivers (customizable), Android platform driver (customizable) |
| Drive program |
Directshow components Halcon special components Labview dedicated drive OXC components TWAIN components
|
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions |
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction,ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc
|
Tài liệu
Datasheet
