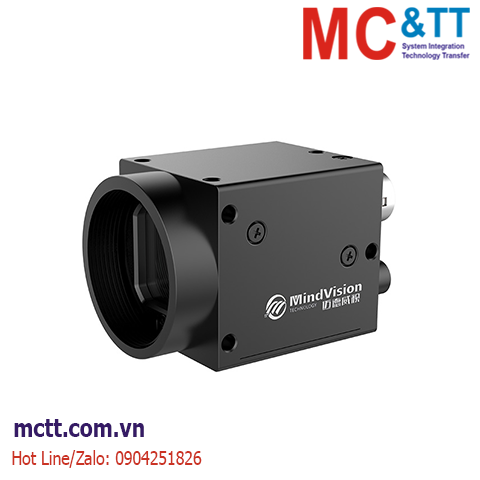

Camera công nghiệp USB3.0 Area Scan 1.3MP, 1/4", 2.7um, 1280x1024, 120.5fps MindVision MV-SUA135GM
The transmission speed of USB3.0 is significantly higher than USB2.0 and GigE cameras. With 5Gbps transmission bandwidth and high-speed sensor, the camera of 0.3MP and 800 fps can achieve a minimum transmission time of 1.2 ms, and a 20MP pixel camera can also reach 18fps; Due to the abundant transmission bandwidth, a computer is compatible with multiple camera operation, meanwhile, high frame rate can be guaranteed; The USB 3.0 series has a low CPU utilization, adopting DMA transmission, and the 5Gbps data tranmission hardly occupies CPU resources.
Tính năng
- The camera comes with programmable IO.
- Support external trigger strobe to take photos synchronously.
- Support 8bit to 12bit raw data output.
- Fully compatible with GIGE camera's SDK for seamless replacement.
- Multiple cameras on one computer can work stably without dropping or losing frames for a long time.
- Support PC Linux system and ARM Linux system, available to be integrated into embedded devices.
- Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, Labview and other vision software
Thông số kỹ thuật
| Model |
MV-SUA135GM |
| Sensor |
1/4" CMOS
|
| Sensor type |
/
|
| Camera type |
Mono |
| Pixel size |
2.7umx2.7um |
| Effective pixels |
1.3MP
|
| Resolution @ frame rate |
1280X1080@120.5FPS
|
| Sensitivity |
3500mV/luxs @540nm
|
| Exposure mode |
Frame exposure
|
| Signal to Noise Ratio |
39.8 dB |
| Trigger mode |
Continuous mode / Software trigger / Hardware trigger |
| Dynamic range |
66.5dB/100dB@HDR Mode |
| GPIO |
1 channel optocoupler isolated input, 1 channel optocoupler isolated output, and 1 channel non-isolated input and output |
| Output pixel width |
12bit
|
| AD width |
12bit
|
| Frame buffer |
128M Bytes |
| Exposure time |
0.0072~12823.6ms |
| Maximum gain (multiple) |
16 |
| User EEPROM |
2K Bytes
|
| Video output format |
Mono 8/12bit |
Visual standard protocol
|
USB3Vision 1.0, GenICam |
| Lens interface |
C mount
|
Data interface
|
USB3.0 TYPE B |
| Power supply |
USB 5V or aviation connector with 12V to 24V |
| Power |
<2W
|
| Boundary dimension |
29X29X32.7(mm) (Lens base and rear shell interface are not included) |
| Weight |
<75g
|
| Working temperature |
0~50℃
|
| Working humidity |
20~80%(No Condensation)
|
| Storage temperature |
-30~60℃
|
| Storage humidity |
20~95%(No Condensation)
|
| Operating system |
Windows XP, Windows 7/8/10/11 32-bit and 64-bit systems, Linux 32-bit and 64-bit systems, ARM Linux system, Android system, MAC system |
| Drive program |
Supports USB3 Vision 1.0 protocol software, DirectShow components, dedicated Halcon components, dedicated LabVIEW drivers, OCX components, and TWAIN components |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other functions |
Support ROI of any size custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
