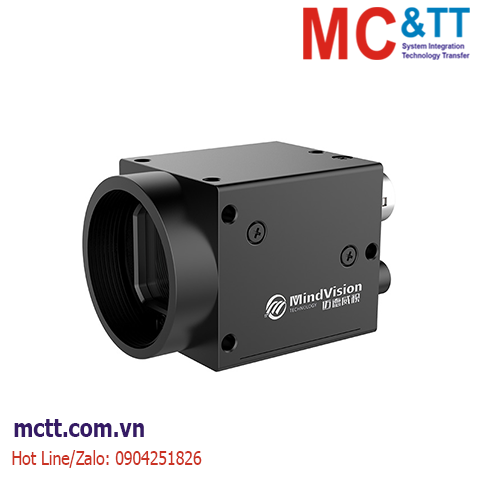

Camera công nghiệp USB3.0 Area Scan 1.3MP, 1/2.7", 4um, 1280x1024, 241.5fps MindVision MV-SUA133GC
The transmission speed of USB3.0 is significantly higher than USB2.0 and GigE cameras. With 5Gbps transmission bandwidth and high-speed sensor, the camera of 0.3MP and 800 fps can achieve a minimum transmission time of 1.2 ms, and a 20MP pixel camera can also reach 18fps; Due to the abundant transmission bandwidth, a computer is compatible with multiple camera operation, meanwhile, high frame rate can be guaranteed; The USB 3.0 series has a low CPU utilization, adopting DMA transmission, and the 5Gbps data tranmission hardly occupies CPU resources.
Tính năng
- The camera comes with programmable IO.
- Support external trigger strobe to take photos synchronously.
- Support 8bit raw data output.
- Fully compatible with GIGE camera's SDK for seamless replacement.
- Multiple cameras on one computer can work stably without dropping or losing frames for a long time
- Support PC Linux system and ARM Linux system, available to be integrated into embedded devices
- Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, Labview and other vision software.
Thông số kỹ thuật
| Model |
MV-SUA133GC |
MV-SUA133GM |
| Sensor |
1/2.7"CMOS |
| Sensor type |
/
|
| Camera type |
Color |
Mono |
| Pixel size |
4umx4um
|
| Effective pixels |
1.3MP
|
| Resolution @ frame rate |
1280x1024MAX@241.5fps
|
| Sensitivity |
8V/Lux·s
|
| Exposure mode |
Frame exposure
|
| Signal to Noise Ratio |
40dB |
| Dynamic range |
60dB |
| GPIO |
1 opto-coupler isolated input, 1 opto-coupler isolated output, 1 non-isolated input and output
|
| Output pixel width |
8bit
|
| AD width |
10bit
|
| Frame buffer |
128M Bytes
|
| Exposure time |
0.004~32.4ms
|
| Maximum gain (multiple) |
6 |
| User EEPROM |
2K Bytes
|
| Video output format |
Bayer 8 bit |
Mono 8 bit |
Visual standard protocol
|
USB3Vision 1.0, GenICam
|
| Lens interface |
C/CS port, adapter rings are provided
|
Data interface
|
USB3.0
|
| Power supply |
5V/Aviation head power supply 12V
|
| Power |
<3W
|
| Boundary dimension |
29X29X32.7(mm)(Lens base and rear shell interface are not included) |
| Weight |
<75g
|
| Working temperature |
0~50℃
|
| Working humidity |
20~80%(No Condensation)
|
| Storage temperature |
-30~60℃
|
| Storage humidity |
20~95%(No Condensation)
|
| Operating system |
WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers MAC OS system
|
| Drive program |
Directshow components Halcon special components Labview dedicated drive OXC components TWAIN components
|
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
|
| Other functions |
Support ROI of any size custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
|
