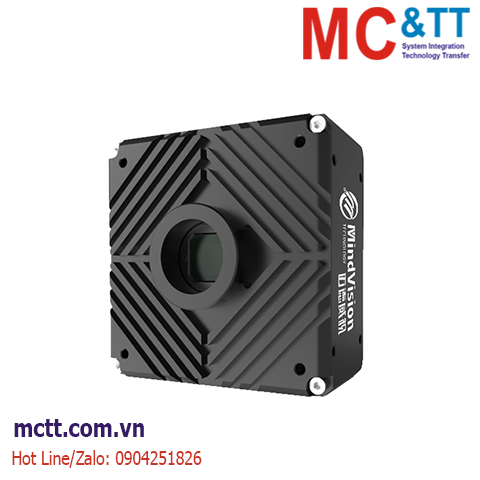

Camera công nghiệp High Speed Area Scan 2.5MP, 2/3", 4.5um, 2048x1216, 1876.5FPS MindVision MV-PX250GM
The Mindvision PX series is a high-speed industrial camera with CoaXPress-12 standard interface, including a variety of products ranging from 2 to 150 million pixels. The PX series is mainly applied to high frame rate and high pixel machine vision scenes, especially suitable for 3D line laser inspection, PCB inspection, biomedical, aerospace, scientific research and other applications.
Tính năng
- CXP-12 interface, the maximum effective data transmission bandwidth is 4850Mbyte. It is 4 times that of 10 Gigabit network and more than 12 times that of USB3.0.
- Excellent SDK design, users do not need to operate the CXP collector card directly, eliminating the tedious configuration process, as simple as using a Gigabit network industrial camera.
- Support flexible combinations of 1, 2, and 4 channels.
- Use HD-BNC to realize standardised industrial-grade cable connections.
- The cable length can reach 10-65 meters(Confirm according to the specific wire specifications and technology), and a coaxial cable can realize signal trigger and power supply
Thông số kỹ thuật
| Model |
Product Model |
MV-PX250GC |
MV-PX250GM |
|
Product Name |
CXP Area Scan Industrial Camera
|
Sensor
|
Color/Mono |
Color |
Mono |
| Sensor Model |
GPIXEL-GSPRINT4502
|
| Sensor Type |
CMOS
|
| Optical Size |
2/3"
|
| Pixel Size |
4.5um×4.5um
|
| Exposure Method |
Global Shutter
|
| Efective Pixels |
2.5MP
|
| AD Width |
12bit
|
Performance
Parameters
|
Signal-to-Noise Ratio |
44.8dB |
| Dynamic Range |
68.2dB |
| Sensitivity |
-84.6dB |
| Quantum Efciency |
65.7% |
| Resolution@Frame Rate |
2048*1216 MAX@1876.5FPS |
| Output Pixel Width |
12bit
|
| Video Output Format |
Bayer GB 8/12bit |
Mono 8/10/12 bit |
| Maximum gain |
16X
|
| Exposure Time Range |
0.0010~65.5350ms
|
| Trigger Mode |
Continuous/Software Trigger/Hardware Trigger
|
| Frame Bufer |
/
|
| User-Defned Data Area |
64KB
|
Electrical
Characteristics
|
Data Interface |
CXP12-4 (HD-BNC interface) |
| I/O Port |
2 differential inputs, 1 optocoupler isolated input, 1 non-isolated output |
| Power Supply |
DC24V/PoCXP power supply |
| Power |
<15W@DC24V |
Structural
Characteristics
|
Heat Dissipation Method |
Aluminum Alloy Body Natural Cooling
|
| Lens Mount |
M58×0.75
|
| External Dimensions |
89x89x40mm (excluding lens mount and rear shell interface) |
| Weight |
<700g
|
| Ingress Protection Rating |
IP40
|
| Temperature |
Operating Temperature 0~50°C / Storage Temperature -30~60°C
|
| Humidity |
Operating Humidity 20~80% (non-condensing) / Storage Humidity 20~95% (non-condensing)
|
Protocol
Standards
|
Operating system |
WINXP/7/10/11 systems (32 & 64-bit), Linux (32 & 64-bit)
|
| Software |
Control software for capture cards compliant with the CoaXPress protocol |
| Vision Standard Protocol |
CoaXPress 2.1,GenICam
|
| Certification |
CE,RoHS
|
Other functions
|
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc
|
