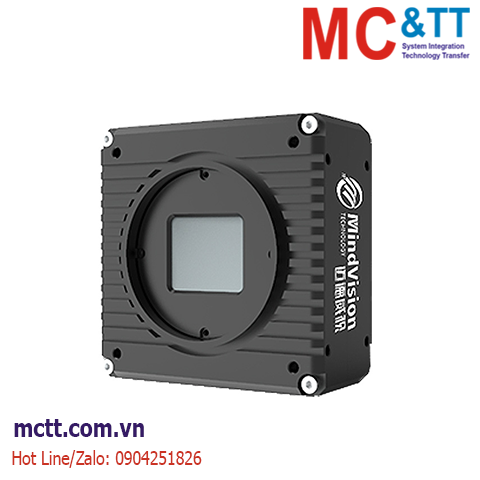

Camera công nghiệp High Speed Area Scan 21MP, 23.04x18.43mm, 4.5um, 5120x4096, 226fps MindVision MV-PX2100GM
The Mindvision PX series is a high-speed industrial camera with CoaXPress-12 standard interface, including a variety of products ranging from 2 to 150 million pixels. The PX series is mainly applied to high frame rate and high pixel machine vision scenes, especially suitable for 3D line laser inspection, PCB inspection, biomedical, aerospace, scientific research and other applications.
Tính năng
- CXP-12 interface, the maximum effective data transmission bandwidth is 4850Mbyte. It is 4 times that of 10 Gigabit network and more than 12 times that of USB3.0.
- Excellent SDK design, users do not need to operate the CXP collector card directly, eliminating the tedious configuration process, as simple as using a Gigabit network industrial camera.
- Support flexible combinations of 1, 2, and 4 channels.
- Use HD-BNC to realize standardised industrial-grade cable connections.
- The cable length can reach 10-65 meters(Confirm according to the specific wire specifications and technology), and a coaxial cable can realize signal trigger and power supply
Thông số kỹ thuật
| Product Model |
MV-PX2100GC |
MV-PX2100GM |
Optics
|
23.04x18.43mm
|
| Exposure mode |
Global exposure |
| Sensor Type |
CMOS |
| Camera type |
Color |
Mono |
| Pixel size |
4.5umx4.5um
|
| Effective Pixels |
21MP |
| Resolution@Frame Rate |
5120x4096@226FPS |
| Output Pixel Width |
12bit
|
| AD Width |
12bit
|
| Signal-to-Noise Ratio |
45 dB
|
| Dynamic Range |
68 dB |
| Sensitivity |
＜-86dB |
| Acquisition Mode |
Continuous / Software Triggered / Hardware Triggered |
| GPIO |
2 differential inputs, 1 optocoupler-isolated input, 1 non-isolated output |
Maximum gain (multiple)
|
16 |
| Exposure time range (ms) |
0.001-65.535 |
| User-defined data area |
64KB |
| Video Output Format |
Bayer GR 8/12bit |
Mono 8/12 bit |
| Vision Standard Agreement |
CoaXPress2.1, GenICam
|
| Lens Mount |
M58×0.75 |
| Data interface |
CXP12-4 (HD-BNC Interface) |
| Power supply |
DC 24V/PoCXP power supply |
| Power |
<18W@DC24V |
| Dimensions |
89x89x40mm (excluding lens mount and rear shell interface) |
| Weight |
<720g
|
| Operating Temperature |
0~50°C |
| Operating Humidity |
20~80%(No condensation) |
| Storage temperature |
-30~60℃ |
| Storage humidity |
20~95%(No condensation) |
| Operating system |
Windows XP/7/10/11 32/64bits and Linux 32/64bits |
| Driver |
Directshow component Halcon special component Labview special driver OCX component TWAIN component
|
Programming
language pack |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
Other functions
|
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc. |
Tài liệu
Datasheet
