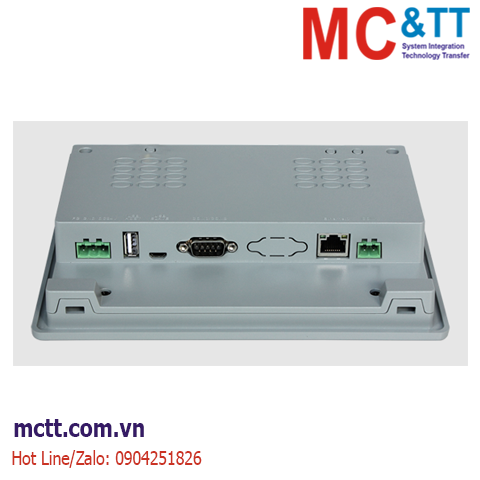

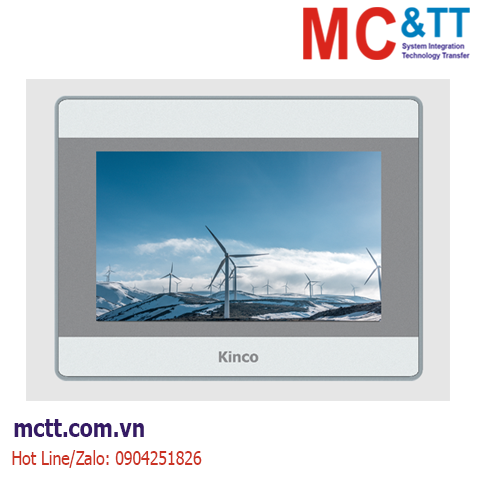

Màn hình cảm ứng HMI 7 inch Kinco MT070E (3 COM, 1 USB Host, 1 Ethernet)
Tính năng
- 7",HD display 256K color;
- The new generation of Kinco Dtools configuration software is powerful and easy to use;
- ARM RISC 32Bit 792MHz;
- Installation buckle seal design, waterproof, oil proof.
Thông số kỹ thuật
|
Performance specification |
|
Display size |
7" TFT |
|
Display area |
154.08mm(W)x85.92mm(H) |
|
Resolution |
800*480 pixels |
|
Display color |
256K color |
|
Display angle of view |
70/70/50/70(left/right/up/down) |
|
Contrast ratio |
500:1 |
|
Backlight |
LED |
|
Brightness |
250cd/m2 |
|
Backlight life |
50000 hours |
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
CPU |
ARM RISC 32Bit 792MHz |
|
Storage |
128MB Flash Memory+64MB Memory |
|
RTC |
Built-in real time clock |
|
Extensible memory |
1USB Host |
|
Printer port |
USB Host/Serial port |
| Program download |
USB Slave (Micro USB)/ Ethernet |
| Ethernet |
1*10/100M self-adaption |
| Communication port |
COM0:RS232/RS485/RS422; COM1:RS485; COM2:RS232 |
|
Electrical specification |
|
Input power supply |
DC10V~DC28V |
|
Rated power |
4.2W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB |
Exquisite spraying |
|
Shell material |
Engineering plastic |
|
Shape size(mm) |
204mm*150mm*37mm |
|
Cutout size(mm) |
192mm*138mm |
|
Weight |
0.5 Kg |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
Conforming to IP65 certification (4208一93) |
|
CE certification |
CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DTools V4.1 and above version |
Thông tin đặt hàng
7" 256K color, 800*480 resolution, 3 COM ports, standard 1 USB HOST, 1 USB SLAVE, 1 Ethernet, memory 64MB
Tài liệu
Datasheet
User Manual
Software
Kinco DTools V4.1.0.3（Build230705）
