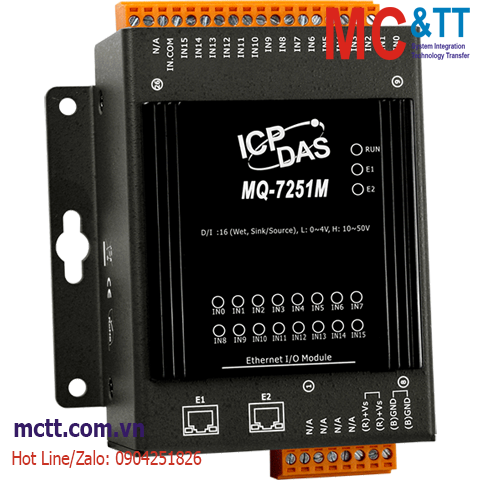

Module 2 cổng Ethernet MQTT 16 kênh DI ICP DAS MQ-7251M CR

Chia sẻ:
Mã sản phẩm: MQ-7251M
Thương hiệu: ICP DAS
Tình trạng:

MQTT I/O Module with 16-ch DI (Wet)

Liên hệ
Mô tả

Module 2 cổng Ethernet MQTT 16 kênh DI ICP DAS MQ-7251M CR

Features

  • Built-in Web Server
  • Web HMI
  • Support Modbus TCP and MQTT Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Dual Watchdog
  • Built-in I/O
    • DI: 16 Channels

Introduction

The MQ-7251M is an Ethernet I/O device equipped with 16-channel DI, as well as the MQTT and Modbus TCP protocols, which are supported for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. A friendly web-based user interface is provided for users to configure the module and access the network connection status and I/O status via a normal web browser on a mobile device or computer.

The MQ-7251M features optical isolation for 2500 VDC of transient overvoltage protection but does not provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present.

Applications

  • Factory, Building and Home Automation Remote Maintenance.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
LED Indicators
Status Run, Ethernet, I/O
Digital Input
Channels 16
Type Wet Contact
Sink/Source (NPN/PNP) Sink, Source
ON Voltage Level +10 ~ +50 VDC
OFF Voltage Level +4 VDC Max.
Input Impedance 10 kΩ
Overvoltage Protection +70 VDC
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX, Switch Ports
LAN bypass Yes
Protocol MQTT 3.1.1
Modbus TCP
Isolation 1500 VDC
Power
Reverse Polarity Protection Yes
Consumption 2.9 W Max.
Powered from Terminal Block +12 ~ +48 VDC
Mechanical
Casing Metal
Dimensions (mm) 97 x 120 x 42 (W x L x H)
Installation DIN-Rail or Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

MQ-7251M     CR  MQTT I/O Module with 2-port Ethernet Switch with 16-ch DI (Wet) (RoHS)
