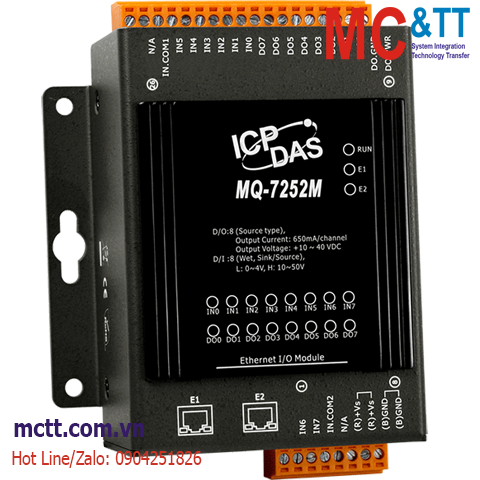

Module 2 cổng Ethernet MQTT 8 kênh DI + 8 kênh DO ICP DAS MQ-7252M CR
Features
- Built-in Web Server
- Web HMI
- Support Modbus TCP and MQTT Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- Dual Watchdog
- Built-in I/O
- DI: 8 Channels
- DO: 8 Channels
Introduction
The MQ-7252M is an Ethernet I/O device equipped with 8-channel DI and 8-channel DO, as well as the MQTT and Modbus TCP protocols, which are supported for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. A web-based user interface is provided to configure the module, monitor the network connection status and I/O status, and control digital output channels on the module via a normal web browser on a mobile device or computer.
The MQ-7252M features optical isolation for 2500 VDC of transient overvoltage protection but doesn't provide channel-to-channel isolation. Each output channel can drive up to 650 mA load, together with configurable power-on value and safe value. It can safely be used in applications where hazardous voltages are present.
Applications
Specifications
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet, I/O |
| Digital Input |
| Channels |
8 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink, Source |
| ON Voltage Level |
+10 ~ +50 VDC |
| OFF Voltage Level |
+4 VDC Max. |
| Input Impedance |
10 kΩ |
| Overvoltage Protection |
+70 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+10 ~ +40 VDC |
| Load Current |
650 mA/channel at 25°C |
| Overvoltage Protection |
+47 VDC |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX, Switch Ports |
| LAN bypass |
Yes |
| Protocol |
MQTT 3.1.1
Modbus TCP |
| Isolation |
1500 VDC |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.4 W Max. |
| Powered from Terminal Block |
+12 ~ +48 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
97 x 120 x 42 (W x L x H) |
| Installation |
DIN-Rail or Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| MQ-7252M CR |
MQTT I/O Module with 2-port Ethernet Switch with 8-ch DI (Wet) and 8-ch DO (Source) (RoHS) |
