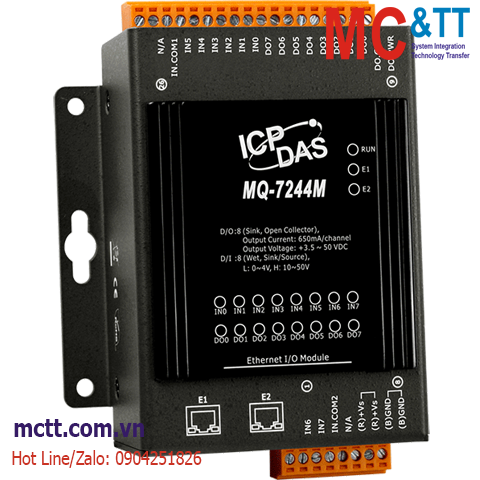

Module 2 cổng Ethernet MQTT 8 kênh DI + 8 kênh DO ICP DAS MQ-7244M CR

Chia sẻ:
Mã sản phẩm: MQ-7244M
Thương hiệu: ICP DAS
Tình trạng:

MQTT I/O Module with 8-ch DI (Wet) and 8-ch DO (Sink)

Liên hệ
Mô tả

Module 2 cổng Ethernet MQTT 8 kênh DI + 8 kênh DO ICP DAS MQ-7244M CR

Features

  • Built-in Web Server
  • Web HMI
  • Support Modbus TCP and MQTT Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Dual Watchdog
  • Built-in I/O
    • DI: 8 Channels
    • DO: 8 Channels

Introduction

The MQ-7244M is an Ethernet I/O device equipped with 8-channel DI and 8-channel DO, as well as the MQTT and Modbus TCP protocols, which are supported for connecting with a variety of digital sensors in Industrial Internet of Things (IIoT) applications. A web-based user interface is provided to configure the module, monitor the network connection status and I/O status, and control digital output channels on the module via a normal web browser on a mobile device or computer.

The MQ-7244M features optical isolation for 2500 VDC of transient overvoltage protection but doesn't provide channel-to-channel isolation. Each output channel can drive up to 650 mA load, together with configurable power-on value and safe value. It can safely be used in applications where hazardous voltages are present.

Applications

  • Factory, Building and Home Automation Remote Maintenance.

Specifications

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
LED Indicators
Status Run, Ethernet, I/O
Digital Input
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Sink, Source
ON Voltage Level +10 ~ +50 VDC
OFF Voltage Level +4 VDC Max.
Input Impedance 10 kΩ
Overvoltage Protection +70 VDC
Digital Output
Channels 8
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ +50 VDC
Load Current 650 mA/channel at 25°C
Direct Drive Power Relay Module
Overvoltage Protection +60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX, Switch Ports
LAN bypass Yes
Protocol MQTT 3.1.1
Modbus TCP
Isolation 1500 VDC
Power
Reverse Polarity Protection Yes
Consumption 3.3 W Max.
Powered from Terminal Block +12 ~ +48 VDC
Mechanical
Casing Metal
Dimensions (mm) 97 x 120 x 42 (W x L x H)
Installation DIN-Rail or Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

MQ-7244M     CR  MQTT I/O Module with 2-port Ethernet Switch with 8-ch DI (Wet) and 8-ch DO (Sink) (RoHS)
