Features
- Maximum communication speed: 20 Mbps
- 32-ch isolated digital inputs
- Each Motionnet transfer Line: connect modules up to 64
- Designing isolation protection: power, communication, I/O
- LED Diagnostics for communication and I/O status
Introduction

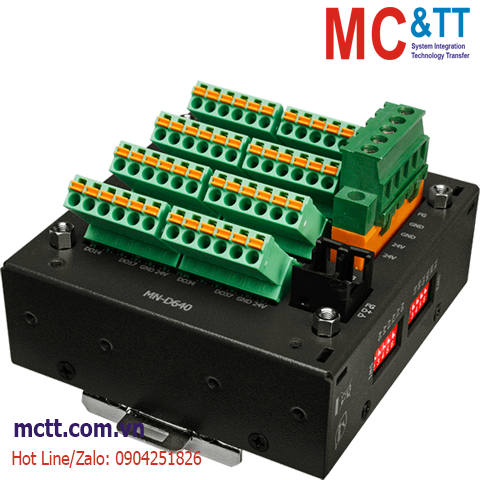

The MN-D640-DIN is an I/O expansion device for Motionnet systems and is equipped with 32 isolated digital input channels. Each Motionnet communication line can be connected to up to 64 modules, meaning that the I/O can be expanded to up to 2048 input channels. The communication time required by each MN-D640-DIN is 15.1 us. If 64 modules have been connected, signals for 2048 points on 64 modules can be sent and received within 0.97 msec. The update of the I/O status is completed automatically through the Motionnet system at a constant interval, and setting interrupts for specific input points that the customer wants to monitor can help prevent CPU time from being wasted by repetitive polling when there is nothing else for the issuing process to do.
Specifications
| Hardware |
| Connector |
6-pin pluggable terminal block x 8 |
| LED Indicators |
| Status |
Communication state (Link, Error)
Internal 3.3 V Power
Termination Resistor Switch
Input/Output state |
| Digital Input |
| Channels |
32 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
NPN |
| ON Voltage Level |
+10 ~ 24 VDC |
| OFF Voltage Level |
+3 VDC max. |
| Isolation |
2500 Vrms |
| Input Impedance |
4.7 KΩ |
| Motionnet |
| Communication Connectors |
Mini-clamp Connector x 2 |
| Transfer Speed |
Selectable 2.5, 5, 10 or 20 Mbps
by DIP Switch. |
| Cyclic Time |
15.1 μs per device (20 Mbps) |
| Power |
| Input Range |
24 VDC (1000 V isolated) |
| Consumption |
2 W Max. |
| Mechanical |
| Casing |
Aluminum |
| Dimensions (mm) |
83 mm x 93 mm x 63 mm |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| MN-D640-DIN CR |
Distributed Motionnet 32-ch Isolated DI Module with Mini-clamp Connector (RoHS) |
