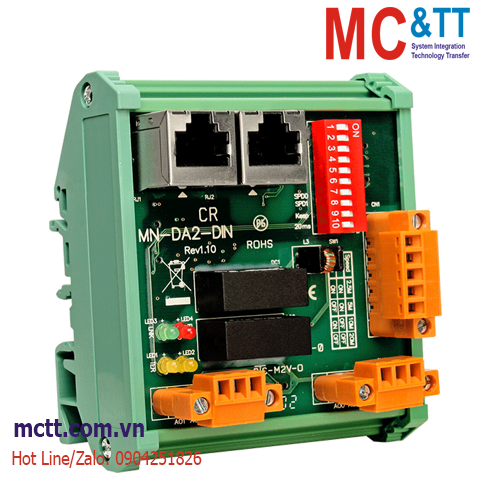

Module Motionnet 2 kênh ra tương tự AO ICP DAS MN-DA2-DIN CR
Features
- Dual channel +/- 10 V analog output
- RJ-45 communication port
- 2 way isolation on power, communication
- 16-bit high resolution, 0.3mV min
- Software calibration of offset/gain
- Rapid output rate, Slew rate = 20 V / us
- High precision, DNL = +/-1 LSB, INL = +/-3 LSB
Introduction
The MN-DA2-DIN is a Motionnet 2-channel analog output I/O module. The max device capacity can be loaded 64 I/O modules on each Motionnet communication port. Thus, each port can be expanded into 128 analog output points at once. The communication latency between two devices is 15.1μsec so that the max communication latency with 64 I/O modules on one communication port is 0.97 ms. The I/O connection status update is automated and real-time by the hardware without occupying CPU time. The 16-bit high precision resolution analog output is provided +/- 10V range, 5V reference voltage with low shift, and hardware calibration in offset and gain for easy usage to customers.
Specifications
| LED Indicators |
| Status |
Communication state (Link, Error)
Internal 3.3 V Power
Termination Resistor Switch |
| Analog Output |
| Channels |
2 |
| Range |
+/- 10 V |
| Resolution |
16-bit |
| Accuracy |
DNL = +/- 1 LSB
INL = +/- 3 LSB |
| Response Time |
Slew rate: 20 V / us |
| Voltage Output Capability |
+/- 20 mA Max per channel |
| Calibration |
Offset: provided by software
Gain: provided by software |
| Motionnet |
| Transfer Speed |
Selectable 2.5, 5, 10 or 20 Mbps
by DIP Switch |
| Cyclic Time |
15.1 μs per device (20 Mbps) |
| Power |
| Input Range |
24VDC +/-5% (1000 V isolated) |
| Consumption |
3 W Max. |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
75mm x 90mm x 57 mm (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| MN-DA2-DIN CR |
Distributed Motionnet 2-ch Analog Output Module (RoHS) |
