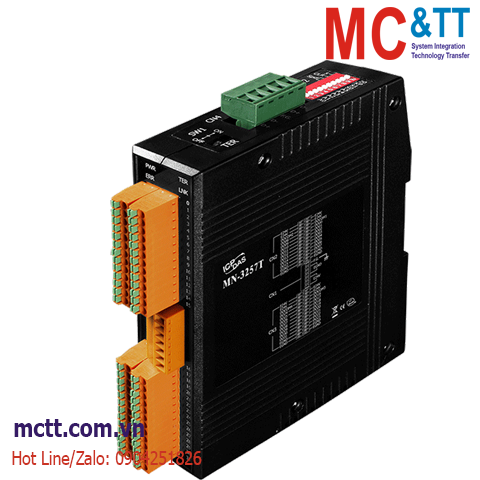

Module Motionnet 32 kênh đầu ra số DO ICP DAS MN-3257T CR
Features
- Maximum communication speed: 20 Mbps
- 32-ch isolated digital outputs
- Each Motionnet transfer Line: connect modules up to 64
- Designing isolation protection: power, communication, I/O
- LED Diagnostics for communication and I/O status
- The internal flywheel diode of each output port can be connected to different sources of power individually
- High current sinking capability (200 mA)
Introduction
The MN-3257T is an I/O expansion device for Motionnet systems and is equipped with 32 isolated digital output channels. Each Motionnet communication line can be connected to up to 64 modules, meaning that the I/O can be expanded to 2048 output channels. The communication time required by each MN-3257T is 15.1 us. If 64 modules have been connected, signals for 2048 points on 64 modules can be sent and received within 0.97 msec. The update of the I/O status is completed automatically through the Motionnet system at a constant interval, and setting interrupts for specific input points that the customer wants to monitor can help prevent CPU time from being wasted by repetitive polling when there is nothing else for the issuing process to do. The internal flywheel diodes of each output port can be individually connected to different sources of power (each port is comprised of 8 I/O signals).
Specifications
| Hardware |
| Connector |
13-pin pluggable terminal block x 4 |
| LED Indicators |
| Status |
Communication state (Link, Error)
Internal 3.3 V Power
Termination Resistor Switch
Input/Output state |
| Digital Output |
| Channels |
32 |
| Type |
Open Collector (Sink),
with internal flywheel diode |
| Load Voltage |
+30 VDC max. |
| Load Current |
200 mA max. for each channel |
| Isolation |
3000 Vrms |
| Motionnet |
| Communication Connectors |
5-pin terminal block |
| Transfer Speed |
Selectable 2.5, 5, 10 or 20 Mbps
by DIP Switch. |
| Cyclic Time |
15.1 μs per device (20 Mbps) |
| Power |
| Input Range |
24 VDC (1000 V isolated) |
| Consumption |
2 W Max. |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
31 mm x 140 mm x 126.6 mm |
| Installation |
DIN-Rail mounting |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| MN-3257T CR |
Distributed Motionnet 32-ch Isolated DO Module with Terminal Block (RoHS) |
