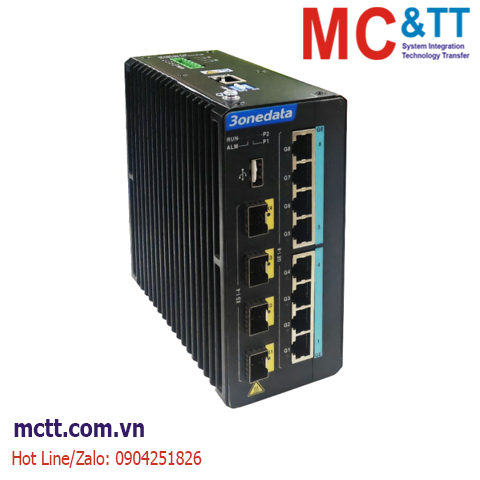

Switch công nghiệp IEC61850 quản lý 8 cổng Gigabit Ethernet + 4 cổng 10Gb SFP+ 3onedata MES6400PHR -8GT4XS-2LV
MES6400PHR-8GT4XS series products are 12-port Gigabit/10Gigabit Ethernet switches. This series supports 8 Gigabit copper ports and 4 10Gigabit SFP+ slots, and adopts DIN-Rail mounting, which is specially designed for extremely severe electromagnetic interference environment to meet the anti-interference requirements of power monitoring industry.
Network management system supports a variety of network protocols and industry standards, such as ARP, IPv4, Ring, MRP, VLAN, STP/RSTP/MSTP, PTP, ERPS, LLDP, IGMP Snooping, QoS, port trunking, port mirroring, etc. It has perfect management functions, supporting port configuration, port statistics, ACL, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
DC power supply input consists of two independent power supply circuits, which can ensure device’s normal operation when one fails. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits the industrial scene environment with harsh requirements for EMC. It can be widely used in smart substation, smart grid, energy storage, photovoltaic, wind electricity, non-electric industry SCADA system and other industrial fields.
Tính năng
- Support 8 10/100/1000Base-T(X) Ethernet copper ports and 4 10Gigabit SFP+ slots
- Support Precision Time Protocol (PTP), provide sub-microsecond synchronization accuracy to meet requirements for high-precision time synchronization
- Support IEC61850-MMS, ensuring the efficient, reliable and standardized communication between substation devices
- Support MRP ring network, reconfiguration time < 200ms
- High voltage input products support 110VDC or 220VAC/DC; Low voltage input products support 24/48VDC dual power input
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3ae for 10GBase-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
ITU-T G.8032 for ERPS |
|
Management |
SNMP v1/v2c/v3 centralized managed equipment, Port Mirroring, Link Flapping Protection, RMON, LLDP, DHCP Server, DHCP Snooping, port statistics, file management, online upgrade, log information, Syslog report, IEC61850 MMS |
|
Security |
User authority classification, port and power alarm, MAC security, AAA, 802.1X authentication, RADIUS, TACACS+, MAC-Based authentication, port speed limit, port isolation, port alarm, temperature alarm, DC power alarm, network load alarm |
|
Switch Function |
802.1Q VLAN, link aggregation, flow control, ARP, storm control |
|
Unicast / Multicast |
Multicast filtering, IGMP Snooping |
|
Redundancy Technology |
STP/RSTP/MSTP, ERPS, Ring, MRP, HSR/PRP |
|
Troubleshooting |
Ping, Traceroute, Network Cable Diagnosis, SFP Digital Diagnosis |
|
Time Management |
NTP, PTP |
|
Interface |
Gigabit copper port: 8 10/100/1000Base-T(X) copper ports, self-adaption or forced mode, Automatic Flow Control, Full/Half Duplex self-adaption, MDI/ MDI-X Autotunning
10Gigabit SFP+ slot: 4 1G/2.5G/5G/10G Base-X self-adaption or forced mode, SFP+ slot
Console port: CLI command line management port(RS-232), RJ45
USB interface: USB2.0 Type-A(Female), download logs and configuration files, upload configuration files, upgrade software package |
|
Indicator |
Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 32K
Cache: 3Mbit
Backplane bandwidth: 96Gbps
Switch time delay: <10μs |
|
Power Supply |
MES6400PHR-8GT4XS-2LV:
24/48VDC (18~60VDC), support anti-reverse connection and dual power supply redundancy
MES6400PHR-8GT4XS-HV:
110VDC or 220VAC/DC（85~264VAC/110~300VDC）
Power terminal blocks: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins) |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%~95% (no condensation) |
|
Power Consumption |
MES6400PHR-8GT4XS-2LV:
- No-load: 7.4W@48VDC
- Full-load: 14.6W@48VDC
MES6400PHR-8GT4XS-HV:
- No-load: 7.4W@220VAC
- Full-load: 14.6W@220VAC
|
|
Mechanical Structure |
Installation: DIN-Rail mounting
Dimension (W x H x D): 62mm×150mm×135mm
MES6400PHR-8GT4XS-HV Weight: 1.394kg
MES6400PHR-8GT4XS-2LV Weight: 1.428kg |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
- Air discharge: ± 15kV
- Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
- Power supply: ±4kV
- Ethernet interface: ±2kV
IEC 61000-4-5 (Surge), Level 4
- Power supply: common mode ±4kV, differential mode ±2kV
- Ethernet port: common mode ±4kV, differential mode ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
|
Model |
Gigabit Copper Port |
10 Gigabit
SFP+ Slot |
Power Supply |
|
MES6400PHR -8GT4XS-2LV |
8 |
4 |
24/48VDC (18~60VDC) |
|
MES6400PHR -8GT4XS-HV |
8 |
4 |
110VDC or 220VAC/DC (85~264VAC/110~300VDC) |
