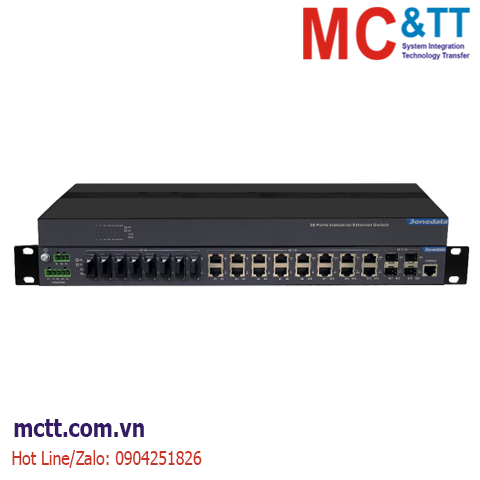

Switch công nghiệp IEC61850 quản lý 16 cổng Gigabit Ethernet + 8 cổng Quang + 4 cổng Gigabit SFP 3onedata MES5200-16GT8F4GS-2LV
MES5200 series products are 28-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series provides 100M fiber port, Gigabit copper port and Gigabit SFP slot, and adopts standard rack installation method, which is specially designed for extremely severe electromagnetic interference environment to meet the anti-interference requirements of power monitoring industry.
Network management system supports a variety of network protocols and industry standards, such as ARP, IPv4, Ring, MRP, VLAN, STP/RSTP/MSTP, ERPS, LLDP, IGMP Snooping, Modbus TCP, QoS, port trunking, port mirroring, etc. It has perfect management functions, supporting port configuration, port statistics, ACL, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch could implement device factory setting recovery and restart. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits the industrial scene environment with harsh requirements for EMC. It can be widely used in smart substation, smart grid, energy storage, photovoltaic, wind electricity, non-electric industry SCADA system and other industrial fields.
Tính năng
- Support 16 Gigabit copper ports, 8 100M fiber ports and 4 Gigabit SFP slots
- Support MRP ring network, reconfiguration time < 200ms
- Support multiple network protocols and industrial standards, such as ARP, STP/RSTP/MSTP, ERPS, VLAN, LACP, IGMP Snooping, LLDP, SNMP, etc., support Modbus TCP monitoring instruction of electricity SCADA system
- DC product supports 2 24/48VDC (18-72VDC), dual power supply redundancy, support anti-reverse connection
- AC product supports 2 110/220VAC/DC (85-264VAC/77-300VDC), dual power supply redundancy
- Support -40~85℃ wide temperature operation, support level 4 electromagnetic compatibility protection, and conform to IEC 61850-3 and IEEE 1613 (substation) standards
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
ITU-T G.8032 for ERPS |
|
Management |
SNMP v1/v2c/v3, RMON, LLDP, QoS, port settings, dynamic/static MAC address, MAC/IPv4, log report |
|
Security |
Classification of User Permissions, Port and Power Alarm, MAC Security, Port Security, AAA, 802.1X Authentication, RADIUS, TACACS+, MAC-Based Authentication, Storm Control |
|
Switch Function |
802.1Q VLAN, link aggregation, flow control |
|
Unicast / Multicast |
Multicast filtering, IGMP Snooping |
|
Redundancy Technology |
STP/RSTP/MSTP, ERPS, Ring, MRP |
|
Troubleshooting |
Log record, port mirroring, Ping, Traceroute, network cable diagnosis, SFP DDM |
|
Time Management |
NTP |
|
Interface |
Gigabit copper port: 10/100/1000Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
100M fiber port: 100Base-FX
Gigabit SFP: 1000Base-X SFP slot, support forced 100M
Console port: CLI command line management port(RS-232), RJ45
Alarm port: support 1 relay alarm output, adopt 3-pin 5.08mm pitch terminal blocks, current carrying capacity is 2A@250VAC or 2A@220VDC |
|
Indicator |
Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator |
|
Switch property |
Transmission mode: store and forward
MAC address: 8K
Buffer: 4.1Mbit
Backplane bandwidth: 56Gbps
Switch time delay: <10μs |
|
Power Supply |
Adopt 5-pin 5.08mm pitch terminal blocks
DC Product
2 24/48VDC (18-72VDC), dual power supply redundancy, support anti-reverse connection
AC product
2 110/220VAC/DC (85-264VAC/77-300VDC), dual power supply redundancy |
|
Power Consumption |
|
Available Models |
No-load |
Full-load |
|
MES5200-16GT8F4GS-2HV |
16.8W@220VAC |
28.3W@220VAC |
|
|
Working Environment |
Operating temperature: -40~85℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Mechanical Structure |
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D): 491.6mm×44.45mm×290mm
Weight: 5.292kg |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
- Air discharge: ± 15kV
- Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
- Power supply: ±4kV
- Relay: ±4kV
- Ethernet interface: ±2kV
IEC 61000-4-5 (Surge), Level 4
- Power supply: common mode ±4kV, differential mode ±2kV
- Relay: common mode ±4kV, differential mode±2kV
- Ethernet interface: ±4kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS, IEC 61850-3 (during authentication), IEEE 1613 (during authentication) |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
|
Available Models |
Gigabit Copper Port |
100M Fiber Port |
Gigabit SFP Slot |
Power Supply |
|
MES5200-16GT8F4GS-2LV |
16 |
8 |
4 |
2 24/48VDC(18-72VDC)
Dual power supply redundancy |
|
MES5200-16GT8F4GS-2HV |
16 |
8 |
4 |
2 110/220VAC/DC (85-264VAC/77-300VDC)
Dual power supply redundancy |
