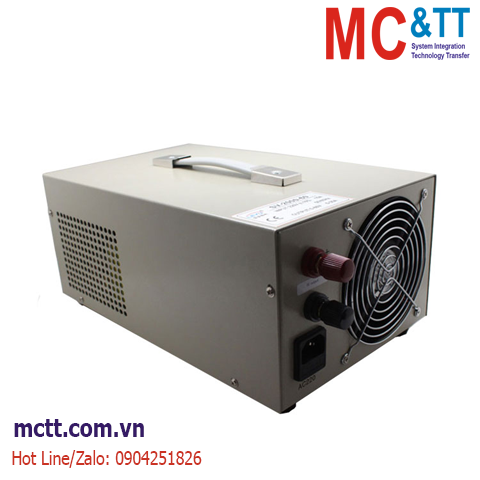

Bộ đổi nguồn AC/DC MCTT-SV-2000-30 2000W, 30VDC, 66.0A
2000W Single Output switching power supply SV-2000 series
Features:
- High efficiency, high reliability
- 100% full load burn-in test
- Protection: Short circuit/ Over load / Over voltage
- Dimensions:300*150*130(mm)
|
SPECIFICATIONS |
|
OUTPUT |
|
|
Model |
SV-2000-12 |
SV-2000-15 |
SV-2000-24 |
SV-2000-30 |
SV-2000-48 |
SV-2000-110 |
|
DC Voltage |
12V |
15V |
24V |
30V |
48V |
110V |
|
Rated Current |
166A |
133.0A |
83.3A |
66.0A |
41.6A |
18A |
|
Current Range |
0-166A |
0-133.0A |
0-83.3A |
0-66.0A |
0-41.6A |
0-18.0A |
|
Ripple & Noise |
160mV |
180mV |
190mV |
320mV |
400mV |
900mV |
|
Voltage Adj. Range |
0.50% |
0.50% |
0.50% |
0.50% |
0.50% |
0.50% |
|
Setup&Rise Time |
100ms,50msat full load |
|
Hold Up Time |
20ms at full load |
|
|
|
|
INPUT |
|
|
Voltage Range |
AC220V±20% 47～63HZ |
|
AC Current |
3.2A/115V1.6A/230V |
|
Efficiency |
86% |
86% |
87% |
87% |
89% |
89% |
|
Inrush Current |
40A/230V |
|
Leakage Current |
<0.5MA/230VAC |
|
|
|
|
PROTECTION |
|
|
Over Load |
110～150% |
|
Protection type: Shut down o/p voltage, re-power on to recover |
|
Over Voltage |
110～150% |
|
Protection type: Shut down o/p voltage, re-power on to recover |
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P:1.5KVAC/1min I/P-F/G:1.5KVAC/1min |
|
Isolation Resistance |
O/P-F/G:0.5KVAC /1min |
|
Gross weight |
6.0kg |
|
Dimension |
300*150*130mm |
|
NOTE |
|
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation
4.The power supply is considered a component which will be installed into a final equipment. The final equipment mustbe re-confirmed that it still meets EMC directives. |
