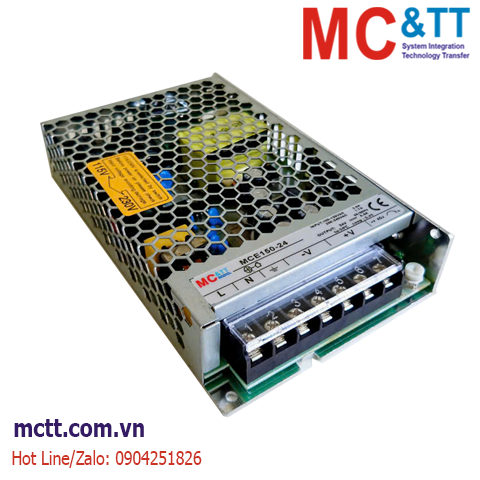

Bộ đổi nguồn tổ ong MCTT-LRS-150-12 150W, 12VDC, 12.5A
MCE150 series is a 150W single output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 12V, 24V and 48VDC.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of MCE150 that the whole series operates from -30 ~ 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. MCE150 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16 and CCC GB4943. MCE150 series serves as a high price-to-performance power supply solution for various industrial applications.
Tính năng
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- High operating temperature up to 70℃
- High efficiency, long life and high reliability
- 1 years warranty
Thông số kỹ thuật
| SPECIFICATION |
|
| OUTPUT |
|
| Model |
MCTT-LRS-150-12 |
MCTT-LRS-150-15 |
MCTT-LRS-150-24 |
MCTT-LRS-150-36 |
MCTT-LRS-150-48 |
| DC Voltage |
12V |
15V |
24V |
36V |
48V |
| Rated Current |
12.5A |
10A |
6.5A |
4.3A |
3.3A |
| Current Range |
0~12.5A |
0~10A |
0~6.5A |
0~4.3A |
0~3.3A |
| Rated Power |
150W |
150W |
156W |
154.8W |
158.4W |
| Ripple & Noise |
150mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
200mVp-p |
| Voltage Adj. Range |
10.2~ 13.8V |
13.5~18V |
21.6~28.8V |
32.4~39.6V |
43.2~52.8V |
| Voltage Tolerance |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| Load Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| Setup, Rise Time |
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
| Hold Up Time |
40ms/230VAC 35ms/115VAC at full load |
| INPUT |
|
| Voltage Range |
85 ~ 132VAC / 170 ~264VAC 240 ~ 370VDC(switch on 230VAC) |
| Frequency Range |
47 ~ 63Hz |
| Efficiency |
87.50% |
88.50% |
89% |
89% |
90% |
| AC Current |
2.8A/115VAC 1.6A/230VAC |
| Inrush Current |
Cold start 60A/230VAC |
| Leakage Current |
<0.75mA / 240VAC |
| PROTECTION |
|
| Over Load |
110 ~ 140% rated output power |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage |
13.8 ~ 16.2V |
18.75~21.75V |
28.8 ~ 33.6V |
41.4~48.6V |
55.2~ 64.8V |
| Protection type: shut down o/p voltage, re-power on to recover |
| ENVIRONMENT |
|
| Working Temp. |
-30 ~ +70℃ (Refer to “derating curve”) |
| Working Humidity |
20 ~ 90% RH non-condensing |
| Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
| Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
| Vibration |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| SAFETY & EMC |
|
| Safety Standards |
UL60950-1, TUV EN60950-1, EN60335-1/-2-16, CCC GB4943 approved |
| Withstand Voltage |
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
| Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
| EMC Emission |
Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN61000-3-2,-3 class A, EN61000-3-3 |
| EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A |
| OTHERS |
|
| Dimension |
159*97*30mm (L*W*H) |
| Weight |
0.48Kg |
| Packing |
30pcs/carton/15.4kg/0.75CUFT |
| NOTE |
|
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. |
