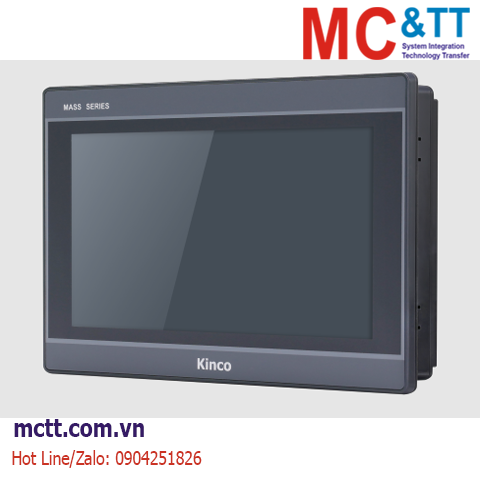

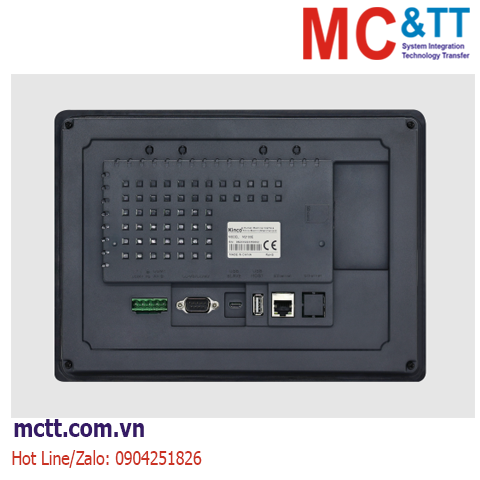

Màn hình cảm ứng HMI 10.1 inch Kinco M2100E (3 COM, 1 USB Host, 1 Ethernet)
Tính năng
- Dual-core 1Ghz CPU for smoother operation
- 256MB storage for larger data storega
- HD display (1024*600)
- Full viewing angle display witch 16 million colors
- High touch sensitivity
- Paired with Kinco DTools configuration software for powerful and easy-to-use-features
Thông số kỹ thuật
|
Performance specification |
|
Display size |
10.1" TFT |
|
Display area |
222.72mm(W)x125.28mm(H) |
|
Resolution |
1024*600 pixels |
|
Display color |
16.2M true color |
|
Display angle of view |
85/85/85/85(left/right/up/down) |
|
Contrast ratio |
500:1 |
|
Backlight |
LED |
|
Brightness |
300cd/m2 |
|
Backlight life |
over 30000 hours |
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
CPU |
ARM Cortex-A7 Dual Core 1GHz |
|
Storage |
256MB Flash Memory+128MB Memory |
|
RTC |
Built-in RTC |
|
Extensible memory |
1USB Host |
|
Printer port |
USB Host/Serial port |
| Program download |
USB Slave(Micro USB)/U Disk/Ethernet |
| Ethernet |
10/100M adaptable Ethernet interface |
| Communication port |
COM0:RS232/RS485/RS422; COM1:RS485; COM2:RS232 |
|
Electrical specification |
|
Input power supply |
DC10V~DC28V |
|
Rated power |
6W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB |
none |
|
Shell material |
Engineering plastic |
|
Shape size(mm) |
280*193*36 (mm) |
|
Cutout size(mm) |
260mm*197mm |
|
Weight |
0.9 Kg |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
Conforming to IP65 certification (4208一93) |
|
CE certification |
CE: EN61000-6-4:2007, EN61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DTools V4.1 and above version |
Thông tin đặt hàng
10.1" 16.77 million true color, 1024*600 resolution, dual-core CPU, flash memory 256MB, memory 128MB, 3 COM ports, standard 1 USB HOST, 1 USB SLAVE, 1 network port
Tài liệu
Datasheet
User Manual
Software
Kinco DTools V4.1.0.3（Build230705）
