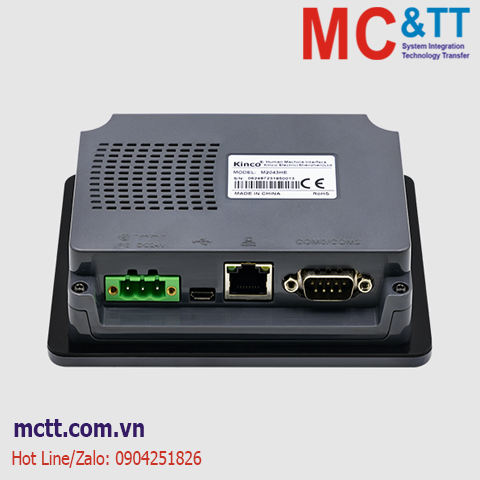

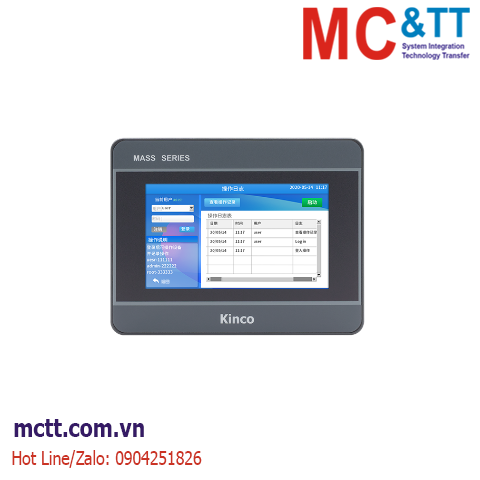

Màn hình cảm ứng HMI 4.3 inch Kinco M2043HE (2 COM, 1 Ethernet)
Tính năng
- 4.3", high definition and high brightness, display color of 16.7M.
- Main frequency 1GHz, 256MB storage and 128MB memory.
- Equipped with Kinco DTools configuration software, which is powerful and easy to use.
Thông số kỹ thuật
|
Performance specification |
| Model |
M2043H |
M2043HE |
|
Display size |
4.3" TFT |
|
Display area |
95.04mm(W)×53.86mm(H) |
|
Resolution |
800x480px |
|
Display color |
16.7M true color |
|
Display angle of view |
80/80/80/80(left/right/up/down) |
|
Contrast ratio |
1200:1 |
|
Backlight |
LED |
|
Brightness |
500cd/m2 |
|
Backlight life |
30000 hours |
|
Touch Panel |
4 line precision resistance network (surface hardness 4H) |
|
CPU |
ARM Cortex-A7 Dual Core 1GHz |
|
Storage |
256MB Flash Memory + 128MB Memory |
|
RTC |
Built-in RTC |
|
Extensible memory |
None |
|
Printer port |
Serial port |
| Program download |
USB Slave (Micro USB)/Serial port |
| Ethernet |
None |
10/100M self-adaption |
| Communication port |
COM0:RS232/RS485/RS422; COM2:RS232 |
|
Electrical specification |
|
Input power supply |
DC10.8V~DC28V |
|
Rated power |
2W @24V DC |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB |
none |
|
Shell material |
Engineering plastic |
|
Shape size(mm) |
132mm×102mm×33mm |
|
Cutout size(mm) |
119mm×93mm |
|
Weight |
0.21 Kg |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
Conforming to IP65 certification |
|
CE certification |
EN61000-6-4:2007+A1:2011，EN61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DTools V4.1 and above version |
Thông tin đặt hàng
4.3 ″ 16.77 million true colors, 1024 * 600 resolution, dual core CPU, 256MB flash memory, 128MB memory, 3 COM ports, standard with 1 USB HOST, 1 USB SLAVE, and 1 network port
Tài liệu
Datasheet
User Manual
Software
Kinco DTools V4.1.0.3（Build230705）
