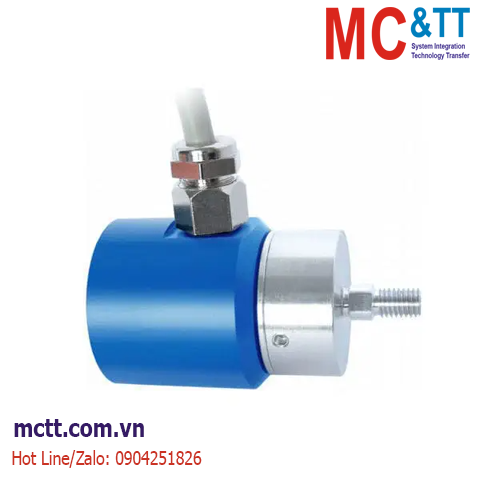

Cảm biến đo Momen xoắn và lực 0.1 Nm / 20 N, 0.5 Nm / 50 N Lorenz M-2416

Chia sẻ:
Mã sản phẩm: M-2416
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Multi-Component Sensor M-2416 (force & torque transducer) for force and non rotary (static) torque measurement produced & distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn và lực 0.1 Nm / 20 N, 0.5 Nm / 50 N Lorenz M-2416

M-2416, Multi-Component Sensor
The M-2416 multi-component sensor is capable of measuring reaction torque and load forces. The unit is well suited for applications such as optimization of the granulation of abrasives.

Features:

  • Torque & Load Force
  • Accuracy: ±0.2%
  • Outer Diameter: 30.0mm
  • Length: 53.0mm
  • Connection: 3m Integral Cable
  • Aluminum

M-2416 - Specifications

Type Multi-Axis
# of Axis 2 (Fx, Mx)
Application Tension & Compression
Full Scale 4.5 lbs
  11.2 lbs
Output 0.5 mV/V
Precision ±0.2 % FS
Excitation 2 V - 8 V DC
IP Rating IP50
Min Temperature 5 °C
Max Temperature 45 °C

Download

Type: M-2416
Measuring Range: 0.1 N·m / 20 N
0.5 N·m / 50 N
Accuracy Class: 0.2 (F);
0.2 (Mt)
Range of Application: E.g. the Optimization of the Granulation of Abrasives
PDF Datasheet: 080971_M-2416_en.pdf
PDF Operation Manual: -
CAD Files: DXF
IGS
