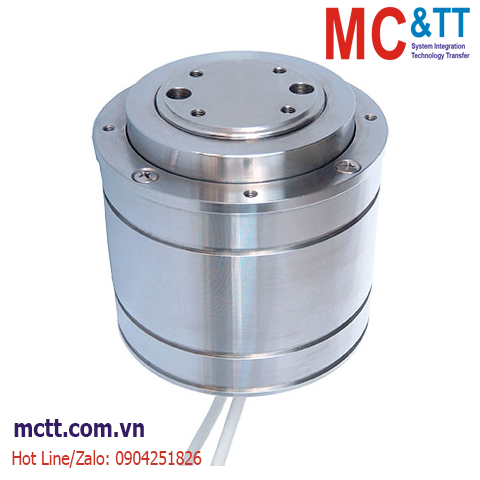

Cảm biến đo Momen xoắn và lực 10 kN / 10 Nm 20 kN / 20 Nm Lorenz M-2025

Chia sẻ:
Mã sản phẩm: M-2025
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Multi-Component Sensor M-2025 (force & torque transducer) for force and non rotary (static) torque measurement produced & distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn và lực 10 kN / 10 Nm 20 kN / 20 Nm Lorenz M-2025

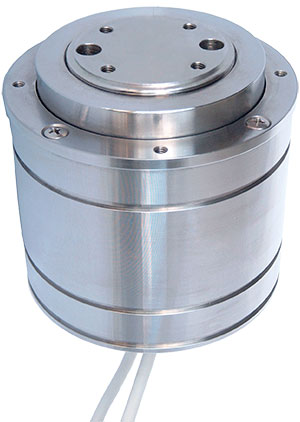

M-2025, Multi-Component Sensor

Features:

  • Torque & Load Force
  • Accuracy: ±0.15%
  • Outer Diameter: 97.0mm
  • Height: 94.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

M-2025 - Specifications

Type Multi-Axis
# of Axis 2 (Fz, Mx)
Application Compression
Full Scale 2200 lbs
  4500 lbs
Output 1 mV/V
Precision ±0.2 % FS
Excitation 2 V - 12 V DC
IP Rating IP40
Min Temperature 0 °C
Max Temperature 100 °C

Download

Type: M-2025
Measuring Range: 10 kN / 10 N·m
20 kN / 20 N·m
Accuracy Class: 0.2 (F)
0.2 (Mt)
Range of Application: E.g. Survey of the Characteristics of Elastomers
PDF Datasheet: 080981_M-2025_en.pdf
PDF Operation Manual: -
CAD Files: DXF
IGS
