Cảm biến đo Momen xoắn và lực 0.5 kN / 5 Nm 0.5 kN / 50 Nm 1 kN / 10 Nm 1 kN / 30 Nm 20 kN / 20 Nm 2 kN / 50 Nm Lorenz M-2396

Chia sẻ:
Mã sản phẩm: M-2396
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Multi-Component Sensor M-2396 (force & torque transducer) for force and non rotary (static) torque measurement produced & distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

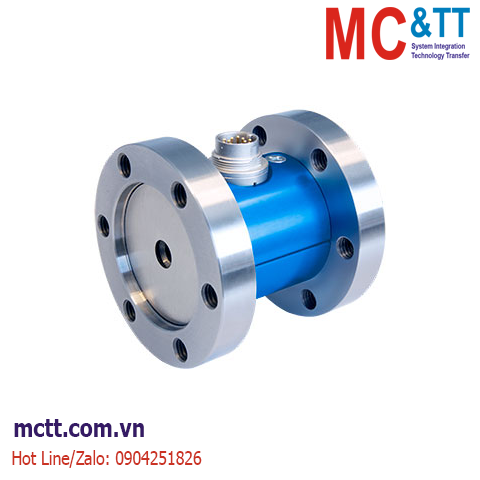

Cảm biến đo Momen xoắn và lực     0.5 kN / 5 Nm 0.5 kN / 50 Nm 1 kN / 10 Nm 1 kN / 30 Nm 20 kN / 20 Nm 2 kN / 50 Nm Lorenz M-2396

M-2396, Multi-Component Sensor
The M-2396 multi-component sensor is capable of measuring reaction torque and load forces.

Features:

  • Torque & Load Force
  • Flanges
  • Accuracy: Load Range: ±0.3%
  • Accuracy: Torque Range: ±0.2%
  • Outer Diameter: 70.0mm
  • Width: 65.0mm
  • Connection: 12-pole Connector

M-2396 - Specifications

Type Multi-Axis
# of Axis 2 (Fz, Mx)
Application Tension & Compression
Full Scale 112 lbs
  220 lbs
  450 lbs
  4500 lbs
Output 1 mV/V
Precision ±0.3 % FS
Excitation 2 V - 12 V DC
IP Rating IP50
Min Temperature -5 °C
Max Temperature 45 °C

Download

Type: M-2396
Measuring Range: 0.5 kN / 5 N·m
0.5 kN / 50 N·m
1 kN / 10 N·m
1 kN / 30 N·m
20 kN / 20 N·m
2 kN / 50 N·m
Accuracy Class: 0.3 (F)
0.2 (Mt)
Range of Application: E.g. Optimization of the Cutting Force of Drills
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends

PDF Datasheet: 080979_M-2396_en.pdf
PDF Operation Manual: -
CAD Files: DXF
IGS
