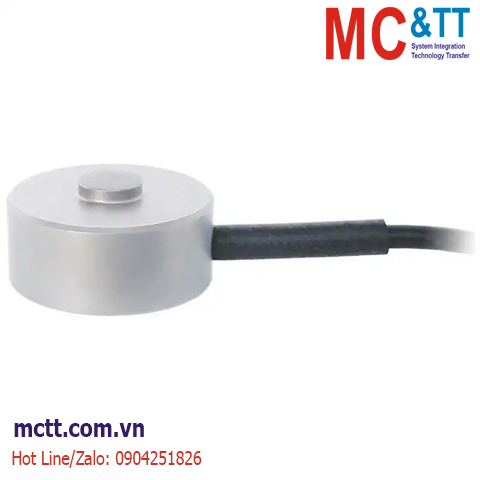

Cảm biến đo lực nén 0.1 kN 0.2 kN 0.5 kN 1 kN 2 kN 5 kN 10 kN 20 kN 50 kN Lorenz K-1613

Chia sẻ:
Mã sản phẩm: K-1613
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression Force Transducer K-1613 - Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực nén 0.1 kN 0.2 kN 0.5 kN 1 kN 2 kN 5 kN 10 kN 20 kN 50 kN Lorenz K-1613

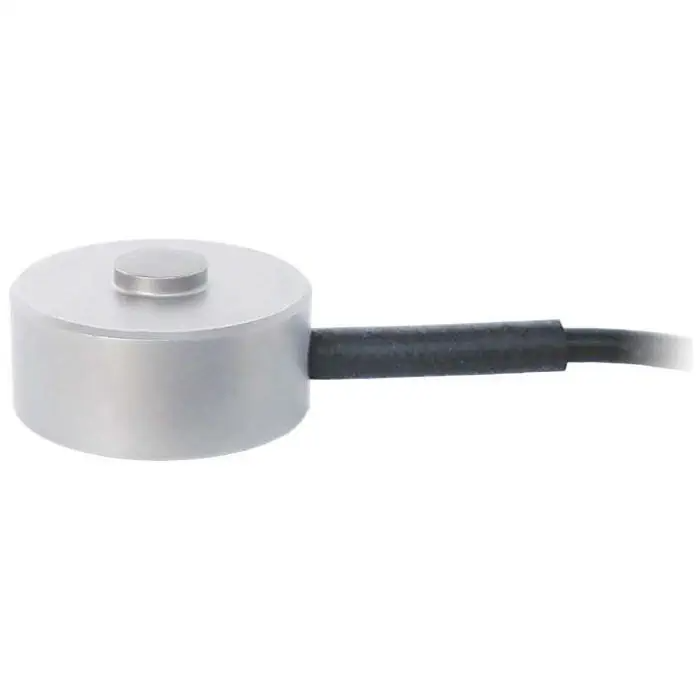

K-1613, Miniature
The sub-miniature compression load cells are flat, cylindrical with covered bottoms. The load application button for receiving the compression forces is an integrated part of the top, which is the sensor's membrane. The connecting cable of the..

Features:

  • Compression
  • Accuracy: ±0.5%
  • Outer Diameter: 26.0mm - 46.0mm
  • Height: 13.0mm - 28.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-1613 - Specifications

Type Load Button
Application Compression
Full Scale 0.1 kN
  0.2 kN
  0.5 kN
  1 kN
  2 kN
  5 kN
  10 kN
  20 kN
  50 kN
Output 1 mV/V
Precision ±0.5 % FS
Excitation 2 V - 12 V DC
IP Rating IP65
Min Temperature 0 °C
Max Temperature 60 °C

Download

PDF Datasheet: 080779a_K-1613_en.pdf
