Cảm biến đo lực nén 0.01 kN 0.02 kN 0.05 kN 0.1 kN 0.2 kN 0.5 kN 1 kN 2 kN 5 kN 10 kN 20 kN 50 kN 100 kN Lorenz K-13 / K-13B

Chia sẻ:
Mã sản phẩm: K-13-K-13B
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression Force Transducers K-13 & K-13B - Lorenz Messtechnik

Liên hệ
Mô tả

Cảm biến đo lực nén 0.01 kN 0.02 kN 0.05 kN 0.1 kN 0.2 kN 0.5 kN 1 kN 2 kN 5 kN 10 kN 20 kN 50 kN 100 kN Lorenz K-13 / K-13B

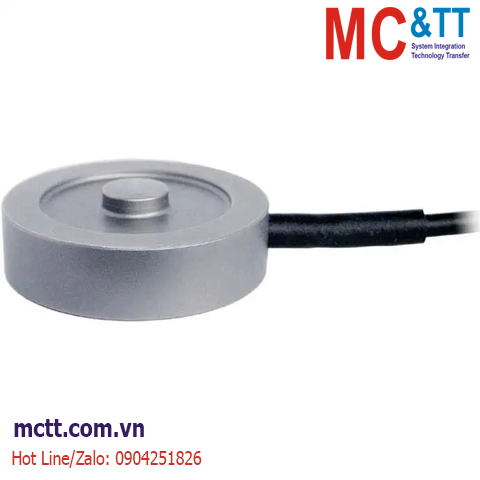

K-13/K-13B, Miniature
The sub-miniature compression load cells are flat, cylindrical with covered bottoms. The load application button for receiving the compression forces is an integrated part of the top, which is the sensor's membrane.The connecting cable of the...

Features:

  • For Press-In Force Control
  • Compression
  • Accuracy: ±0.5%
  • Integrated Overload Protection (option)
  • Outer Diameter: 32.0mm - 79.0mm
  • Height: 20.0mm - 50.0mm
  • Connection: 3m Integral cable
  • Stainless Steel

K-13/K-13B - Specifications

Type Load Button
Application Compression
Full Scale 0.01 kN
  0.02 kN
  0.05 kN
  0.1 kN
  0.2 kN
  0.5 kN
  1 kN
  2 kN
  5 kN
  10 kN
  20 kN
  50 kN
  100 kN
Output 1 mV/V
Precision ±0.5 % FS
Excitation 2 V - 6 V DC
  2 V - 12 V DC
IP Rating IP60
  IP65
Min Temperature 0 °C
Max Temperature 60 °C

Download

PDF Datasheet: 080781d_K-13_en.pdf
