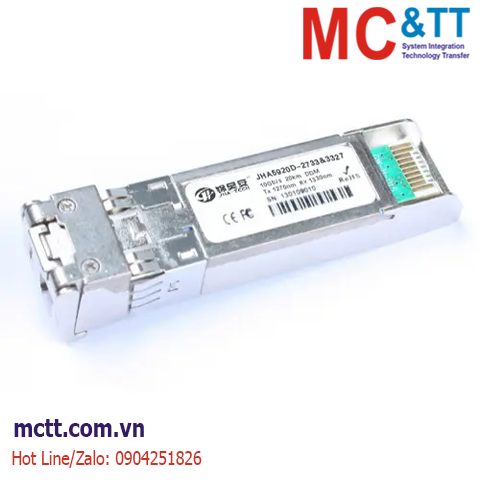

Module quang SFP công nghiệp 10Gb/s, Single-mode, Single LC, 1270nm/1330nm, 20KM JHA Tech JHA5920D-2733
JHA5920D-2733 & JHA5920D-3327 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Tính năng
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Hot-pluggable SFP+ footprint
- Single LC for Bi-directional Transmission
- Maximum link length of 20km
- Built-in 1270/1330 WDM Filter
- Uncooled 1270nm or 1330nm CWDM DFB Laser.
- Power dissipation <1.5W
- No Reference Clock required
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
- Very low EMI and excellent ESD protection
- RoHS Compliant Part
Thông số kỹ thuật
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Storage Temperature |
TS |
-40 |
|
+85 |
°C |
| Supply Voltage |
VCCT, R |
-0.5 |
|
4 |
V |
| Relative Humidity |
RH |
0 |
|
85 |
% |
Recommended Operating Environment
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Case operating Temperature |
TC |
-5 |
|
+70 |
°C |
| Supply Voltage |
VCCT, R |
+3.135 |
|
+3.465 |
V |
| Supply Current |
ICC |
|
|
450 |
mA |
| Power Dissipation |
PD |
|
|
1.5 |
W |
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
| Transmitter |
| Bit Rate |
BR |
9.9 |
|
11.3 |
Gb/s |
|
| Optical Wavelength |
JHA5920D-2733 |
λ |
1260 |
1270 |
1280 |
nm |
|
| JHA5920D-3327 |
|
1320 |
1330 |
1340 |
|
| Average output power |
Po |
-3 |
|
+2 |
dBm |
|
| Optical Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
| Spectral width |
Δλ |
|
|
1 |
nm |
|
| Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
| Optical Eye Mask |
|
Compliant with IEEE802.3ae |
|
| Receiver |
| Bit Rate |
BR |
9.9 |
|
11.3 |
Gb/s |
|
| Optical Wavelength |
JHA5920D-2733 |
λ |
1320 |
1330 |
1340 |
nm |
|
| JHA5920D-3327 |
|
1260 |
1270 |
1280 |
|
|
| Receiver Sensitivity |
Sen |
|
|
-14.5 |
dBm |
1 |
| Maximum Input Power |
PMAX |
0 |
|
|
dBm |
|
| LOS De-Assert |
LOSD |
|
|
-15 |
dBm |
|
| LOS Assert |
LOSA |
-25 |
|
|
dBm |
|
| LOS Hysteresis |
LOSH |
0.5 |
|
4 |
dB |
|
