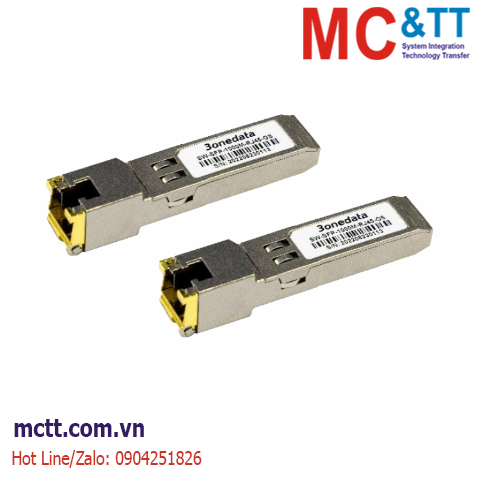

Module cổng đồng RJ45 SFP công nghiệp 1Gb/s 3Onedata SW-SFP-1000M-RJ45-GS
This series of copper module is high performance, cost-effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable.
This series supports 10/100/1000Mbps auto negotiation or 1000Mbps. The module supports 1000Mbps or 10/100/1000Mbps auto negotiation data-links when the SFP interface support SGMII also. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of 0xA0- 0xA2 via the IIC BUS protocol
Tính năng
- Support 1.0Gb/s or 10/100/1000Mbps bi-directional data transmission
- Support hot plugging, Fully metallic case for low EMI
- Compact RJ-45 connector assembly. When the network port is insufficient, users can transform Gigabit SFP fiber port into RJ45 copper port
- Compatible with RoHS and lead-free
- Input voltage: 3.3VDC (±5%), Low power consumption (0.5W typical)
- Support 40~ 75℃ wide temperature operation
Thông số kỹ thuật
| Interface |
Capsulation: SFP
Interface type: RJ45
Cable type: Category 5UTP.BER
Transmission speed: 1.0Gb/s or 10/100/1000Mbps
Transmission distance: 100m |
| Working Environment |
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Input voltage: 3.13~3.47V
Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic |
Shell: metal shell
Installation: plug-in mounting |
| Warranty |
1 year |
Download
Datasheet
Thông tin mua hàng
Available
Models |
Cable
Type |
Transmission
Speed |
Interface
Type |
Transmission
Distance (m) |
Work
Temperature
（℃） |
| SW-SFP-1000M-RJ45-GS |
Category
5UTP.BER |
1.0Gbps |
RJ45 |
100 |
-40~75 |
| SW-SFP-10/100/1000M_RJ45_GS |
Category
5UTP.BER |
10/1001000Mbps |
RJ45 |
100 |
-40~75 |
