Module quang SFP công nghiệp 10Gb/s, Single-mode, Single LC, 1490nm/1570nm, 80KM JHA Tech JHA5980D-4957

Mã sản phẩm: JHA5980D-4957

Thương hiệu: JHA TECH

Tình trạng:

10Gb/s 80km BiDi SFP+ Transceiver Hot Pluggable, Single LC, +3.3V, 1490/1570nm 1570/1490nm EML&APD, Single mode

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

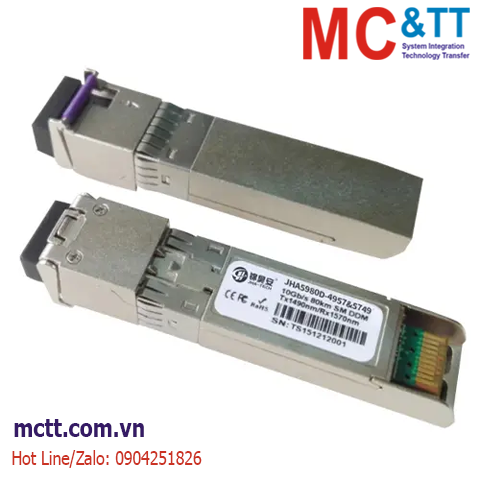

Module quang SFP công nghiệp 10Gb/s, Single-mode, Single LC, 1490nm/1570nm, 80KM JHA Tech JHA5980D-4957

JHA5980D-4957&5749 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The JHA5980D-4957&54 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

The high performance 1490/1570nm 1570/1490nm cooled EML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 80km links.

The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

The fully SFP compliant form factor provides hot plug-ability, easy optical port upgrades and low EMI emission.

Tính năng

Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Single LC for Bi-directional Transmission
Cooled EML transmitter, APD photo-detector
SMF links up to 80km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<3W
Temperature Range: 0~ 70°C
RoHS compliant

Thông số kỹ thuật

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typical	Max.	Unit
Storage Temperature	TS	-40		+85	°C
Case Operating Temperature	TA	0		70	°C
Maximum Supply Voltage	Vcc	-0.5		4	V
Relative Humidity	RH	0		85	%

Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Supply Voltage	Vcc	3.135		3.465	V
Supply Current	Icc			500	mA
Power Consumption	P			1.8	W
Transmitter Section:
Input differential impedance	Rin		100		Ω	1
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT)	V	-0.3		4	V
Differential input voltage swing	Vin,pp	180		700	mV	2
Transmit Disable Voltage	VD	2		Vcc	V	3
Transmit Enable Voltage	VEN	Vee		Vee+0.8	V
Receiver Section:
Single Ended Output Voltage Tolerance	V	-0.3		4	V
Rx Output Diff Voltage	Vo	300		850	mV
Rx Output Rise and Fall Time	Tr/Tf	30			ps	4
LOS Fault	VLOS fault	2		VccHOST	V	5
LOS Normal	VLOS norm	Vee		Vee+0.8	V	5

Optical Parameters(T_OP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)

Parameter			Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	JHA5980D-4957		λt		1490		nm
Center Wavelength	JHA5980D-5749		λt		1570		nm
spectral width			△λ			0.3	nm
Average Optical Power			Pavg	0		+5	dBm	1
Optical Power OMA			Poma	-2.1			dBm
Laser Off Power			Poff			-30	dBm
Extinction Ratio			ER	8.2			dB
Transmitter Dispersion Penalty			TDP			3.0	dB	2
Relative Intensity Noise			Rin			-128	dB/Hz	3
Optical Return Loss Tolerance				21			dB
Receiver Section:
Center Wavelength		JHA5980D-4957	λr		1490		nm
Center Wavelength		JHA5980D-5749	λr		1570		nm
Receiver Sensitivity			Sen			-23	dBm	4
Los Assert			LOSA	-34		-	dBm
Los Dessert			LOSD			-24	dBm
Los Hysteresis			LOSH	0.5			dB
Overload			Sat	-7			dBm	5
Receiver Reflectance			Rrx			-26	dB
