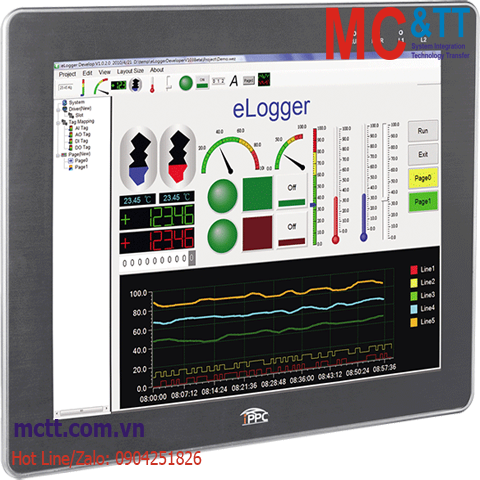

Máy tính công nghiệp màn cảm ứng 15 inch CPU Atom E3827+ WES7 ICP DAS iPPC-6731-WES7 CR

Chia sẻ:
Mã sản phẩm: iPPC-6731-WES7
Thương hiệu: ICP DAS
Tình trạng:

15" Panel PC with Atom E3827 CPU, WES7, and 3 I/O Slots

Liên hệ
Mô tả

Máy tính công nghiệp màn cảm ứng 15 inch CPU Atom E3827+ WES7 ICP DAS iPPC-6731-WES7 CR

Mã hàng đã dừng xản xuất, thay thế và nâng cấp bằng https://mctt.vn/iot-ippc

Features

• Windows Embedded Standard 7 SP1
• Intel® Atom™ E3827 1.75 GHz
• 15" LCD with Touch Panel
• Rich software support
• Various Memory and Storage
      ‣ 2 GB DDR3 SDRAM
      ‣ 16 KB EEPROM and 128 KB MRAM for data retention
• Various Communication Interfaces
      ‣ 2 x RJ-45, 10/100/1000BASE-TX Ethernet Port
      ‣ 3 x Serial Ports (RS-232/RS-485)
      ‣ 3 x USB 2.0 (host)
• NEMA 4/IP65 Compliant Front Panel

Introduction

The iPPC-6731-WES7 series product is WES7 based Panel PC that combine computing, I/O, and operator interface into a single unit, and provides a perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Atom E3827 CPU, three I/O expansion slots, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded via a Compact Flash slot. The local I/O slots are available for using our I-8K or I-87K series I/O modules and remote I/O expansion is available for connecting to our Ethernet I/O modules or RS-485 I/O modules. The iPPC-6731-WES7 is designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. It is also designed to operate over a wide -20°C to 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.

Application

https://mctt.vn/wes-ippc-icp-das

Specifications

Software
OS Windows Embedded Standard 7 SP1
Service IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework Support .Net Framework 3.5, 4.0, 4.5
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net
Main Unit
CPU E3827, 1.75 GHz, 64-bit dual core
64-bit Hardware Serial Number Yes
System Memory 2 GB DDR3 SDRAM
Storage 32 GB SSD, 16 GB CF card
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Size 15"
Backlight Life 50,000 hours
Brightness 400 cd/m2
Resolution 1024 x 768
Touch Panel 5-wire, resistive type; light transmission: 80 %
Contrast Ratio 700:1
LED Indicators
Status 1 x System, 1 x Power, 2 x Programmable
I/O Expansion
I/O Type I-8K, I-87K series
Slots 3
COM Ports
Ports 1 x RS-232, 1 x RS-485 (2500 VDC), 1 x RS-232/RS-485 (2500 VDC)
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Audio
Jack Microphone-in and Earphone-out
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX
USB
Ports 3 x USB 2.0
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs Yes
Consumption 25.0 W
Mechanical
Casing Plastic
Dimensions (mm) 381 x 305 x 88 (W x L x H)
Panel Cut-Out (mm) 366 x 290, ±1 (W x H)
Installation Panel Mounting
Ingress Protection Rating Front panel: NEMA 4/IP65
Weight 5 kg
Environment
Operating Temperature -20 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iPPC-6731-WES7     CR  15" Panel PC with Atom E3827 CPU, WES7, and 3 I/O Slots (RoHS)
