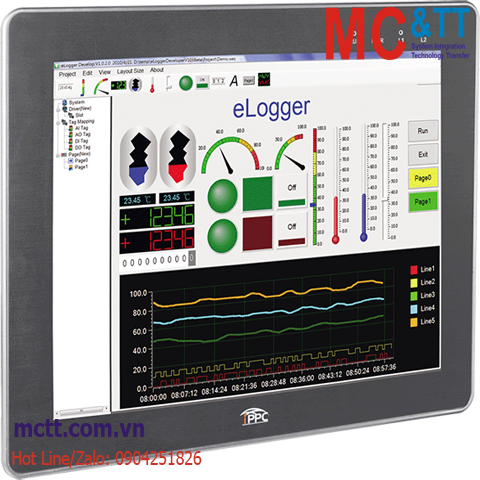

Máy tính công nghiệp màn cảm ứng 15 inch CPU Atom E3827+ WES7 ICP DAS iPPC-6701-WES7 CR

Chia sẻ:
Mã sản phẩm: iPPC-6701-WES7
Thương hiệu: ICP DAS
Tình trạng:

15" Panel PC with Atom E3827 CPU and WES7

Liên hệ
Mô tả

Máy tính công nghiệp màn cảm ứng 15 inch CPU Atom E3827+ WES7 ICP DAS iPPC-6701-WES7 CR

Mã hàng đã dừng xản xuất, thay thế và nâng cấp bằng https://mctt.vn/iot-ippc

Features

• Windows Embedded Standard 7 SP1
• Intel® Atom™ E3827 1.75 GHz
• 15" TFT LCD with Touch Panel
• Rich software support
• Various Memory and Storage
      ‣ 2 GB DDR3 SDRAM
      ‣ 16 KB EEPROM and 128 KB MRAM for data retention
      ‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
      ‣ 2 x RJ-45, 10/100/1000BASE-TX Ethernet Port
      ‣ 2 x Serial Ports (RS-232/RS-422/RS-485)
      ‣ 2 x USB 2.0 (host)
• 64-bit Hardware Serial Number for Software Protection
• Redundant Power Input

Introduction

The iPPC-6701-WES7 are WES7 based Panel PC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Atom E3827 CPU, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded from a Compact Flash slot. Remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -20 ~ 60 °C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.

Application

https://mctt.vn/wes-ippc-icp-das

Specifications

Software
OS Windows Embedded Standard 7 SP1
Service IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework Support .Net Framework 3.5, 4.0, 4.5
Multilanguage Support English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net
Main Unit
CPU E3827, 1.75 GHz, 64-bit dual core
64-bit Hardware Serial Number Yes
System Memory 2 GB DDR3 SDRAM
Storage 32 GB SSD, 16 GB CF card
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Size 15"
Backlight Life 50,000 hours
Brightness 400 cd/m2
Resolution 1024 x 768
Touch Panel 5-wire, resistive type; light transmission: 80 %
Contrast Ratio 700:1
LED Indicators
Status 1 x System, 1 x Power, 2 x Programmable
COM Ports
Ports 2 x RS-232/RS-422/RS-485
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Audio
Jack Microphone-in and Earphone-out
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX
USB
Ports 2 x USB 2.0
Power
Input Range +10 ~ 30 VDC (1500 VDC Isolated)
Redundant Power Inputs Yes
Consumption 29.0 W
Mechanical
Casing Metal
Dimensions (mm) 381 x 305 x 63 (W x L x H)
Panel Cut-Out (mm) 364 x 288, ±1 (W x H)
Installation Panel Mounting, VESA Mounting (75 x 75, 100 x 100)
Ingress Protection Rating Front panel: NEMA 4/IP65
Environment
Operating Temperature -20 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iPPC-6701-WES7     CR  15" Panel PC with Atom E3827 CPU and WES7 (RoHS)
