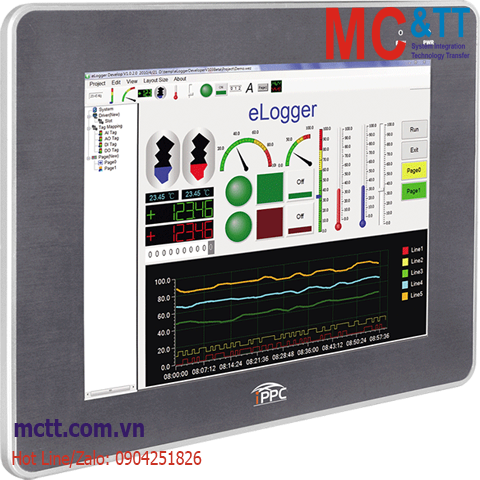

Máy tính công nghiệp màn cảm ứng 10.4 inch CPU Atom E3827+ WES7 ICP DAS iPPC-4701-WES7 CR
Mã hàng đã dừng xản xuất, thay thế và nâng cấp bằng https://mctt.vn/iot-ippc
Features
• Windows Embedded Standard 7 SP1
• Intel® Atom™ E3827 1.75 GHz
• 10.4" TFT LCD with Touch Panel
• Rich software support
• Various Memory and Storage
‣ 2 GB DDR3 SDRAM
‣ 16 KB EEPROM and 128 KB MRAM for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 1 x RJ-45, 10/100/1000BASE-TX Ethernet Port
‣ 2 x Serial Ports (RS-232/RS-422/RS-485)
‣ 2 x USB 2.0 (host)
• 64-bit Hardware Serial Number for Software Protection
• Redundant Power Input
Introduction
The iPPC-4701-WES7 are WES7 based Panel PC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Atom E3827 CPU, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded from a Compact Flash slot. Remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -20 ~ 60 °C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.
Application
https://mctt.vn/wes-ippc-icp-das
Specifications
| Software |
| OS |
Windows Embedded Standard 7 SP1 |
| Service |
IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support |
.Net Framework 3.5, 4.0, 4.5 |
| Multilanguage Support |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net |
| Main Unit |
| CPU |
E3827, 1.75 GHz, 64-bit dual core |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
2 GB DDR3 SDRAM |
| Storage |
32 GB SSD, 16 GB CF card |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Size |
10.4" |
| Backlight Life |
50,000 hours |
| Brightness |
400 cd/m2 |
| Resolution |
800 x 600 |
| Touch Panel |
5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio |
500：1 |
| LED Indicators |
| Status |
1 x System, 1 x Power |
| COM Ports |
| Ports |
2 x RS-232/RS-422/RS-485 |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000 Base-TX |
| Power |
| Input Range |
+10 ~ 30 VDC (1500 VDC Isolated) |
| Redundant Power Inputs |
Yes |
| Consumption |
22.0 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
291 x 229 x 53 (W x L x H) |
| Panel Cut-Out (mm) |
274 x 211, ±1 (W x H) |
| Installation |
Panel Mounting, VESA Mounting (75 x 75, 100 x 100) |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Environment |
| Operating Temperature |
-20 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iPPC-4701-WES7 CR |
10.4" Panel PC with Atom E3827 CPU and WES7 (RoHS) |
