Switch công nghiệp quản lý Layer 3 với 8 cổng Gigabit PoE + 4 cổng 10Gb SFP 3Onedata ICS6400BT-8GP4XS-2LV

Chia sẻ:
Mã sản phẩm: ICS6400BT-8GP4XS-2LV
Thương hiệu: 3onedata
Tình trạng:

DIN-Rail Mounting 12-Port Gigabit/10Gigabit Layer 3 Industrial Ethernet Switch

Liên hệ
Mô tả

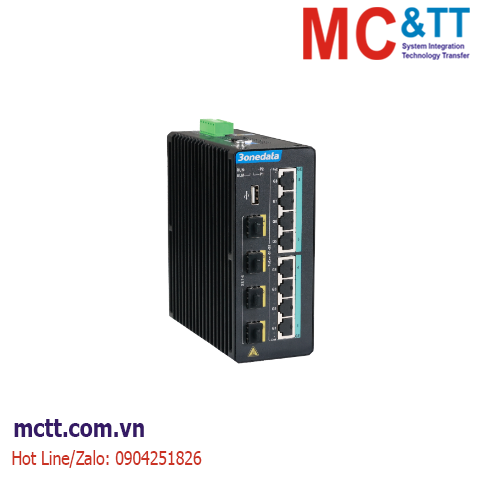

Switch công nghiệp quản lý Layer 3 với 8 cổng Gigabit PoE + 4 cổng 10Gb SFP 3Onedata ICS6400BT-8GP4XS-2LV

ICS6400BT-8GP4XS-2LV is a 12-port Gigabit /10Gigabit layer 3 industrial Ethernet switch. PoE power supply conforms to IEEE802.3af/at/bt protocol standard, and it can power device over Ethernet, thus decreasing the cable connection of powered devices. This product provides Gigabit PoE copper ports and 10 Gigabit SFP+ slots, and it adopts DIN-Rail mounting which can meet the requirements of different scenes.

Network management system supports various network protocols and industrial standards, such as Static Routing, RIP, VRRP, NAT, STP/RSTP/MSTP, EPRS, 802.1Q VLAN, QoS, DHCP Server, DHCP Client, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on; and supports CLI, HTTP, HTTPS, Telnet, SSH and other access methods., Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch could implement device factory setting recovery and restart. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely applied in industrial fields such as smart cities, security, parks, and electronic police.

Tính năng

  • Support 8 Gigabit PoE copper ports, 4 10Gigabit SFP+ slots, and 1 USB interface
  • Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing ring network function, automatic recovery time of network failure < 50ms
  • Support PoE power supply, with a maximum output power consumption of 90W for a single PoE port and a maximum output power of 360W for the entire machine
  • Support 2 48VDC (44~57VDC), dual power redundancy, and anti-reverse connection
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3ae for 10GbE SFP+

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

ITU-T G.8032 for ERPS

IEEE 802.1Q for VLAN

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP

Management SNMP v1/v2 c/v3 centralized management of devices, RMON, port mirroring, LLDP, DHCP, Relay, port speed limit, port isolation, port statistics, file management, online upgrades, log information, Syslog, PoE management
Security User privilege classification, ACL, SSH/HTTPS protocol authorization, access control, SNMP, RMON, link flap protection, port loop detection, IPDT, IPv6DT, Smart-Link, NAT, port alarm, temperature alarm, power alarm, network load alarm
Switch Function 802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression
Unicast / Multicast IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM
Redundancy Technology Ring, MRP, STP/RSTP/MSTP, ERPS
Routing Technique RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP
Troubleshooting Ping, Traceroute, Network Cable Diagnosis, DDM
Time Management NTP
PoE Maximum power: 90W

PoE power supply pins: 1 and 2 are positive, 3 and 6 are negative, 4 and 5 are positive, 7 and 8 are negative

Interface Gigabit copper port: 10/100/1000Base-T(X) adaptive or forced mode, RJ45, automatic flow control, full/half duplex mode adaptive, MDI/MDI-X automatic detection; A single port supports a maximum of 90W PoE power supply output. PoE power supply pin 1 and 2 are positive, 3 and 6 are negative, 4 and 5 are positive, and 7 and 8 are negative

10Gigabit SFP+ slot: 1G/2.5G/10G Base-X self-adaption or forced mode, SFP+ slot

Console port: CLI command line management port (RS-232), RJ45

Alarm port: 6-pin 5.08mm pitch terminal blocks, alarm occupies 2-pin, supports 1 relay alarm output, current load capacity is 5A@30VDC or 10A@125VAC or 5A@250VDC

USB port: Type-A USB 2.0 Female (reserved)

Indicator Power indicator, running indicator, alarm indicator, interface indicator, PoE indicator
Switch Property Transmission mode: store and forward

MAC address: 16K

Cache: 12Mbit

Backplane bandwidth: 128Gbps

Switch delay: <10μs

Power Supply Power input: 2 48VDC (44~57VDC), dual power supply redundancy, support anti-reverse connection

Connection method: adopt 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)

Power Consumption No-load at normal temperature: 6.72W@48VDC

Full-load at normal temperature: 352.3W@48VDC (with PoE)

No-load at high temperature: 9.22W@48VDC

Full-load at high temperature: 357.6W@48VDC (with PoE)

Working Environment Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%~95% (no condensation)

Mechanical Structure Housing: IP30 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 62mm×150mm×135mm

Weight: 1.471kg

Industrial Standard IEC 61000-4-2 (ESD, electronic static discharge), Level 4

Air discharge: ± 15kV

Contact discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4

Power supply: ±4kV

Ethernet interface: ±2kV

Relay: ±4kV

IEC 61000-4-5 (Surge), Level 4

Power supply: common mode ±6kV, differential mode ±2kV

Ethernet port: common mode ±6kV, differential mode ±2kV

Relay: common mode ±6kV, differential mode ±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-31

Vibration: IEC 60068-2-6

Authentication CE, FCC, RoHS
Warranty 3 years

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Model Gigabit Copper PoE Port 10Gigabit SFP+ Slot USB PoE Power Power Supply
ICS6400BT-8GP4XS-2LV 8 4 1 360W 2 48VDC (44~57VDC)

dual power supply redundancy
