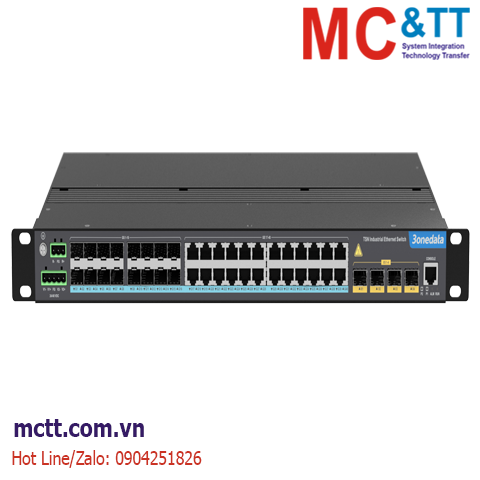

Switch công nghiệp TSN Layer 3 với 4 cổng 10Gb SFP+ + 24 cổng Gigabit Ethernet + 16 cổng Gigabit SFP 3Onedata ICS5400TSN-24GT16GS4XS-LN-2LV
ICS5400TSN-24GT16GS4XS-LN series are 44-port Gigabit/10Gigabit TSN (time sensitive network) switches, and layer 3 industrial Ethernet switches that integrates the characteristics of TSN. This series has 2 products, provides Gigabit copper port, Gigabit SFP slot and 10G SFP+ slot, 12~55VDC or 85~264VAC dual power supply input (optional). It adopts 1U rack-mounted installation to meet the requirements of different application sites.
TSN (Time Sensitive Networking) is a set of protocol standards developed by IEEE802.1 TSN task group. This standard defines the time sensitive mechanism of Ethernet data transmission, and ensures the transmission performance of business traffic in Ethernet by allowing some traffic packets to be forwarded first, clearing routes by using gating scheduling mechanism and bandwidth reservation. It adds certainty and reliability to the standard Ethernet to ensure that the Ethernet can provide stable and consistent service levels for the transmission of critical data. Currently, the supported basic TSN protocols include: IEEE 802.1AS, IEEE 802.1Qbv, IEEE 802.1Qbu, IEEE 802.1Qch, IEEE 802.1CB, IEEE 802.1Qci, etc.
The network management system supports various network protocols and industry standards, such as static routing, RIP, OSPF, OSPFv3, TSN, PTP, Ring, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS, NAS, GVRP, MVRP, DHCP Server/Snooping/Relay, IGMP/MLD Snooping, LLDP, LACP, etc. It also possesses complete management functions, support port configuration, port statistics, access control, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
This series product supports optional dual AC/DC power supply. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. This series product has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Tính năng
- Support 24 Gigabit copper ports, 16 Gigabit SFP slots, 4 10Gigabit SFP+ slots
- Support Precision Time Protocol (PTP), provide sub-microsecond synchronization accuracy to meet requirements for high-precision time synchronization
- Support TSN (time sensitive networking) protocol standards such as IEEE802.1AS, IEEE802.1Qbv, IEEE802.1Qbu, IEEE802.1Qch, IEEE802.1CB and IEEE802.1Qci, which can provide deterministic transmission with low delay and high reliability for data
- Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
- Support DC or AC dual power redundancy (optional), input voltage: 12~55VDC or 85~264VAC
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10GbE SFP+
IEEE 802.1AS PTP for TSN
IEEE 802.1Qbv
IEEE 802.1Qbu
IEEE 802.1Qch
IEEE 802.1CB
IEEE 802.1Qci
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
ITU-T G.8032 for ERPS |
|
TSN |
PTP clock synchronization, frame preemption, time-aware shaper TAS, single stream filtering and management PSFP, frame reliability replication and FRER elimination |
|
Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, QoS, LLDP, log information, Syslog server, CFM, port mirroring, DHCPv4 Server, DHCPv4/v6 Relay, file management, port statistics, DDMI |
|
Security |
User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, Port Security, NAS, ACL, IPv4/v6 Source Protection, ARP Detection, Radius Server Authentication, TACACS + Server Authentication, DHCPv4/v6 Snooping, Storm Suppression, Port Alarm, Power Supply Alarm, Loop Protection |
|
Switch Function |
802.1Q VLAN, Private VLAN, ACL, Port Trunking, Bandwidth Management, Flow Control, Port Isolation, MAC Address Table |
|
Unicast / Multicast |
IPMC, MVR, IGMP Snooping, MLD Snooping, MVRP, GVRP |
|
Redundancy Technology |
Ring, STP/RSTP/MSTP, ERPS |
|
Routing Technique |
RIP, OSPF, OSPFv3 |
|
Troubleshooting |
Ping, Traceroute, Link OAM, cable detection |
|
Time Management |
NTP Client, Time Zone Configuration, PTP |
|
Interface |
Gigabit copper port: 10/100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotunning
Gigabit SFP: 100/1000Base-X self-adaption or forced mode, SFP slot
10Gigabit SFP: 1G/2.5G//10GBase-X self-adaption or forced mode, SFP+ slot
Relay: support 1 relay alarm information output, using 3-pin 5.08mm pitch terminal blocks, and the current load capacity is 1A@30VDC or 0.3A@125VAC
CONSOLE port: CLI command line management port(RS-232), RJ45 |
|
Indicator |
Power indicator, alarm indicator, running indicator, interface indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 32K
Buffer: 32Mbit
Backplane bandwidth: 160G
Switch time delay: <10μs |
|
Power Supply |
ICS5400TSN-24GT16GS4XS-LN-2LV:
- Power supply range: 24VDC/48VDC (12~55VDC), dual power supply redundancy
- Connection mode: 5-pin 5.08mm pitch terminal blocks
- Connection protection: anti-reverse connection
ICS5400TSN-24GT16GS4XS-LN-2HV:
- Power supply range: 110VAC/220VAC (85~264VAC), dual power supply redundancy
- Connection mode: AC socket with switch
|
|
Power Consumption |
ICS5400TSN-24GT16GS4XS-LN-2LV:
- No-load: 19.5W@24VDC
- Full-load: 47.3W@24VDC
|
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Physical Characteristic |
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D): 441.6mm×44.45mm×290mm (lugs are not included) |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
- Contact discharge: ±6kV
- Air discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3
- Power supply: ±2kV
- Signal: ±2kV
IEC 61000-4-5 (Surge), Level 3
- Power supply: differential mode±1kV, common mode±2kV
- Signal: ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
|
Warranty |
3 years |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
|
Available Models |
Gigabit Copper Port |
Gigabit SFP |
10Gigabit SFP+ |
Power Supply |
|
ICS5400TSN-24GT16GS4XS-LN-2LV |
24 |
16 |
4 |
12~55VDC, dual power supply |
|
ICS5400TSN-24GT16GS4XS-LN-2HV |
24 |
16 |
4 |
85~264VAC, dual power supply |
