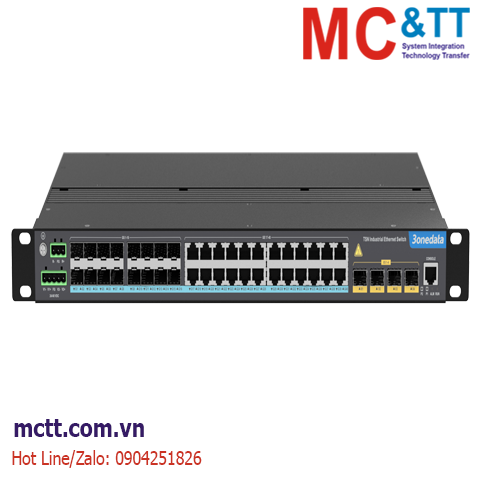

Switch công nghiệp TSN Layer 3 với 4 cổng 10Gb SFP+ + 24 cổng Gigabit Ethernet + 16 cổng Gigabit SFP 3Onedata ICS5400TSN-24GT16GS4XS-LN-2HV

Chia sẻ:
Mã sản phẩm: ICS5400TSN-24GT16GS4XS-LN-2HV
Thương hiệu: 3onedata
Tình trạng:

19-inch 1U Rack Mounting 44-Port Gigabit/ 10Gigabit Layer 3 TSN Industrial Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp TSN Layer 3 với 4 cổng 10Gb SFP+ + 24 cổng Gigabit Ethernet + 16 cổng Gigabit SFP 3Onedata ICS5400TSN-24GT16GS4XS-LN-2HV

ICS5400TSN-24GT16GS4XS-LN series are 44-port Gigabit/10Gigabit TSN (time sensitive network) switches, and layer 3 industrial Ethernet switches that integrates the characteristics of TSN. This series has 2 products, provides Gigabit copper port, Gigabit SFP slot and 10G SFP+ slot, 12~55VDC or 85~264VAC dual power supply input (optional). It adopts 1U rack-mounted installation to meet the requirements of different application sites.

TSN (Time Sensitive Networking) is a set of protocol standards developed by IEEE802.1 TSN task group. This standard defines the time sensitive mechanism of Ethernet data transmission, and ensures the transmission performance of business traffic in Ethernet by allowing some traffic packets to be forwarded first, clearing routes by using gating scheduling mechanism and bandwidth reservation. It adds certainty and reliability to the standard Ethernet to ensure that the Ethernet can provide stable and consistent service levels for the transmission of critical data. Currently, the supported basic TSN protocols include: IEEE 802.1AS, IEEE 802.1Qbv, IEEE 802.1Qbu, IEEE 802.1Qch, IEEE 802.1CB, IEEE 802.1Qci, etc.

The network management system supports various network protocols and industry standards, such as static routing, RIP, OSPF, OSPFv3, TSN, PTP, Ring, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS, NAS, GVRP, MVRP, DHCP Server/Snooping/Relay, IGMP/MLD Snooping, LLDP, LACP, etc. It also possesses complete management functions, support port configuration, port statistics, access control, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

This series product supports optional dual AC/DC power supply. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, and the external heat sink provides extraordinary heat dissipation performance. This series product has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Tính năng

  • Support 24 Gigabit copper ports, 16 Gigabit SFP slots, 4 10Gigabit SFP+ slots
  • Support Precision Time Protocol (PTP), provide sub-microsecond synchronization accuracy to meet requirements for high-precision time synchronization
  • Support TSN (time sensitive networking) protocol standards such as IEEE802.1AS, IEEE802.1Qbv, IEEE802.1Qbu, IEEE802.1Qch, IEEE802.1CB and IEEE802.1Qci, which can provide deterministic transmission with low delay and high reliability for data
  • Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
  • Support DC or AC dual power redundancy (optional), input voltage: 12~55VDC or 85~264VAC
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3ae for 10GbE SFP+

IEEE 802.1AS PTP for TSN

IEEE 802.1Qbv

IEEE 802.1Qbu

IEEE 802.1Qch

IEEE 802.1CB

IEEE 802.1Qci

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE802.1p for CoS

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP

ITU-T G.8032 for ERPS


PTP clock synchronization, frame preemption, time-aware shaper TAS, single stream filtering and management PSFP, frame reliability replication and FRER elimination


SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, QoS, LLDP, log information, Syslog server, CFM, port mirroring, DHCPv4 Server, DHCPv4/v6 Relay, file management, port statistics, DDMI


User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, Port Security, NAS, ACL, IPv4/v6 Source Protection, ARP Detection, Radius Server Authentication, TACACS + Server Authentication, DHCPv4/v6 Snooping, Storm Suppression, Port Alarm, Power Supply Alarm, Loop Protection

Switch Function

802.1Q VLAN, Private VLAN, ACL, Port Trunking, Bandwidth Management, Flow Control, Port Isolation, MAC Address Table

Unicast / Multicast

IPMC, MVR, IGMP Snooping, MLD Snooping, MVRP, GVRP

Redundancy Technology


Routing Technique



Ping, Traceroute, Link OAM, cable detection

Time Management

NTP Client, Time Zone Configuration, PTP


Gigabit copper port: 10/100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotunning

Gigabit SFP: 100/1000Base-X self-adaption or forced mode, SFP slot

10Gigabit SFP: 1G/2.5G//10GBase-X self-adaption or forced mode, SFP+ slot

Relay: support 1 relay alarm information output, using 3-pin 5.08mm pitch terminal blocks, and the current load capacity is 1A@30VDC or 0.3A@125VAC

CONSOLE port: CLI command line management port(RS-232), RJ45


Power indicator, alarm indicator, running indicator, interface indicator

Switch Property

Transmission mode: store and forward

MAC address: 32K

Buffer: 32Mbit

Backplane bandwidth: 160G

Switch time delay: <10μs

Power Supply


  • Power supply range: 24VDC/48VDC (12~55VDC), dual power supply redundancy
  • Connection mode: 5-pin 5.08mm pitch terminal blocks
  • Connection protection: anti-reverse connection


  • Power supply range: 110VAC/220VAC (85~264VAC), dual power supply redundancy
  • Connection mode: AC socket with switch

Power Consumption


  • No-load: 19.5W@24VDC
  • Full-load: 47.3W@24VDC

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: 19-inch 1U rack mounting

Dimension (W x H x D): 441.6mm×44.45mm×290mm (lugs are not included)

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

  • Contact discharge: ±6kV
  • Air discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient), Level 3

  • Power supply: ±2kV
  • Signal: ±2kV

IEC 61000-4-5 (Surge), Level 3

  • Power supply: differential mode±1kV, common mode±2kV
  • Signal: ±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6




3 years



Quick Guide

Thông tin đặt hàng

Available Models

Gigabit Copper Port

Gigabit SFP

10Gigabit SFP+

Power Supply





12~55VDC, dual power supply





85~264VAC, dual power supply
